| Categories | Industrial Laser Welding Machines |
|---|---|
| Brand Name: | Domainlaser |
| Model Number: | CY-WF500/CY-WF600 |
| Certification: | CE/FDA/ISO |
| Place of Origin: | China Wuhan |
| MOQ: | 1 unit |
| Price: | 11999usd/per unit |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200units per month |
| Delivery Time: | 3-7 working days |
| Packaging Details: | plywood cases |
| Type laser welder: | Metal Welding |
| Key words: | handheld laser welding machine |
| Welding applications: | Stainless Steel, Titanium, Iron, Galvanized sheet |
| Cooling system: | Water Cooling |
| Welding type: | Manufacturing Plant |
| Laser output: | Laser Power 300W~600W |
| Power supply: | 380V/50Hz/20A |
| Position: | Optional CCD+ Red Dot |
| Product name: | Trade Assurance Portable Small Fiber Laser Optic Welder |
| Voltage: | 220V/380V |
| Warranty: | 12 Months |
| After-sales service provided: | Engineers available to service machinery overseas,Overseas service center available,Free spare parts,Video technical support |
| Usage: | Welding,Carbon Steel welding,outdoor work with power source,weld materials of stainless steel |

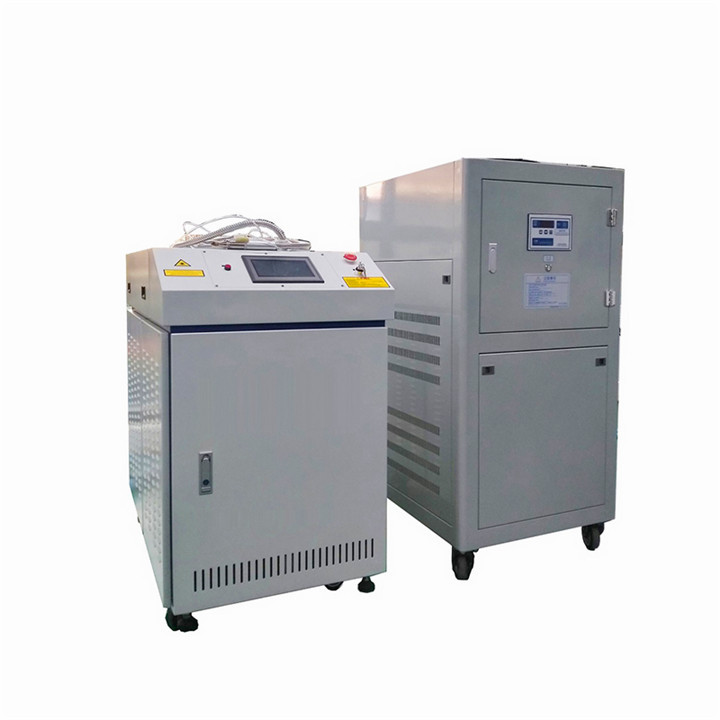

Trade Assurance Portable/Handheld/Manual Fiber Laser Optic Welder Channel Letter Laser Welding Machine Price
Technical Index:
| Product Name | Trade Assurance Portable Small Fiber Laser Optic Welder Channel Letter Laser Welding Machine Price | |
| Model No. | CY-WF500 | CY-WF600 |
| Laser Power | 500W | 600W |
| Laser Source | Nd3+: YAG bar Φ8*155mm | Nd3+: YAG bar Φ8*165mm |
| Laser Wavelength | 1064nm | |
| Laser Tube Qty’ | 1 pc | 2 pcs |
| Single-pulse Energy | 100J | 120J |
| Pulse Duration | 0.2~20ms | |
| Frequency Range | 0.1~100Hz | 0.1~100Hz |
| Workable Current | 50~300A | 50~300A |
| Welding Spot Diameter | 0.3~1.0mm | 0.3~1.2mm |
| Table Size | W1000*L750mm | |
| Laser Arm Stretch | total length 1370mm,strech distance 750mm | |
| Fiber Cable Length | 5 meters (work distance of pen mode) | |
| Settings Memory | 100 groups | |
| Control Panel | 7” color LED touch screen | |
| Language Option | English/Chinese | |
| Power Supply | 220V/50Hz (220V/60Hz optional) | 380V/50Hz (380V/60Hz optional) |
| Power Consumption | Laser: 8KW , Chiller:1KW | Laser:14KW , Chiller:3.3KW |
| Dimensions(mm) | Laser &table: 1730*750*1250 Chiller: 480*580*800 (1HP) | Laser & table: 1730*750*1250 Chiller: 1100*650*1350 (3HP) |
| Net Weight | 305KG | 400KG |
| Package Volume | 2.5CBM | 3CBM |
| Package Weight | 345KG | 450KG |
| Applicable Materials | Stainless Steel, Titanium, Iron, Galvanized sheet | Stainless Steel, 1000 Serial Aluminum, Copper Alloy, Titanium, Iron, Galvanized sheet |
| Material Thickness | <=2.5mm | <=3mm |
Advantage:
| 1.Ceramic converging cavity is imported from the Britain. It is corrosion resistant and high temperature resistant, and has 8-10 years service life. The life of xenon lamp is more than 8 million times. |
| 2.Use the most advanced light shielding system to eliminate the irritation to eyes by light during working. |
| 3.The laser head and optics part can be rotated for 360°, upward/downward lifting and forward/backward pushing, suitable for repairing of large, medium and small moulds. |
| 4.The parameters are controlled by intelligent remote controller, which is simple and convenient. |
| 5.The work bench can be lifted, and moved in three dimensions. |
| 6.The size of light spot can be adjusted. |
Applicable Industry:
| 1. Widely applied in the fields of aeronautical and space, mechanism, electron, communication, dynamic,Chemical, automobile manufacture and other industries. |
| 2. The welding of automobile spare parts, such as hydraulic pressure jib, gasoline cleaner, left gas sensor,Electromagnetic valve, and drive starting stator. |
| 3. The close welding of lithium ion batteries, such as mobile phone batteries and power batteries. |
| 4. In metallurgy industry, such as silicon steel plate welding. |
| 5. The welding of engine and engine lamina in application military industry. |
| 6. The precise spot welding of the electronic components and close welding of relay. |
| 7. In electrical equipments industry, such as silicon steel sheet welding, the rotor of the air-conditioner Drive welding, and creepage protection welding. |
Applicable Materials:
Materials that can be welded are extensive: cold work alloy steel, hot work alloy steel, nickel tool steel, steel alloy, high tenacity aluminum alloy, etc. Other metals like gold, silver, brass, aluminum-magnesium alloy, titanium, and platinum are also applicable.
Welding samples for yag fiber handheld laser welder
Any details please kindly contact AMy:
|
