| Categories | Centrifugal Blower Fan |
|---|---|
| Brand Name: | CPMDJ |
| Model Number: | YYS-65-4 |
| Certification: | CCC |
| Place of Origin: | Made in China |
| MOQ: | 100PCS |
| Price: | Negotiable |
| Payment Terms: | TT, LC |
| Supply Ability: | 10000000 |
| Delivery Time: | 15-35 days |
| Packaging Details: | Foam+Carton |
| Type: | Forward Centrifugal Fan |
| Frequency: | 50/60HZ |
| Protect Feature: | Totally Enclosed |
| AC Voltage: | 208-230 / 240 V |
| Product Name: | HVAC Radial Fan Centrifugal Air Conditioning Blower With Double Air Flow Inlet |
| Protection class: | IP44 |
| Winding: | Copper Wire |
| Bearing: | Ball/Sliding Bearing |

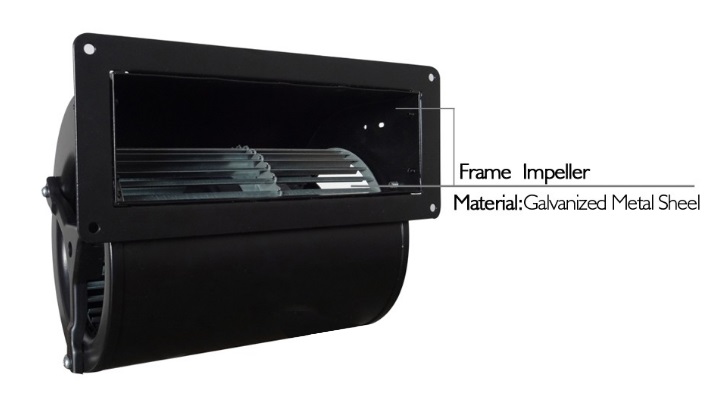

| Blade material: | Stainless Steel,Steel Plate,Galvanized sheet |
| Warranty: | 1 Year |
| Power: | 65W |
| Air volume: | 1000 |
| Speed: | 850rpm |
| Motor: | AC Motor,Brushless External Rotor Motor,100% cooper with overload protection,China Brand,Equipped with motor |
| Size: | Customized |

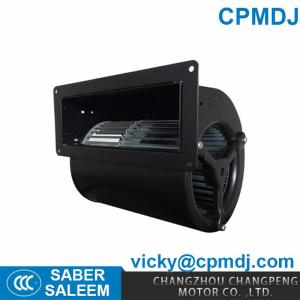

850RPM Centrifugal Blower Fan Centrifugal Air Blower Centrifugal Air Blower Whatsapp 19851926586
The radial / centrifugal fans have an impeller as the moving component; it is nothing but a set of blades or ribs suitably placed around a central shaft. They are also sometimes called a squirrel cage or a scroll fan.
AC/EC/DC External Rotor Motor Powered Double-Inlet Housing Centrifugal Fan
Specification:
| Fan model | Motor model | Voltage | Frequency | Speed | Air volume | Current | Capacitor |
| CPZ7-7 | YDK90-6 | 203V-240V | 50/60Hz | 850RPM | 1000m³/h | 0.9A | 5μF |
| YDK200-4 | 203V-240V | 50/60Hz | 1150RPM | 1500m³/h | 1.8A | 10μF | |
| CPZ8-8 | YDK200-6 | 203V-240V | 50/60Hz | 820RPM | 2000m³/h | 2.0A | 10μF |
| YDK300-4 | 203V-240V | 50/60Hz | 1200RPM | 2200m³/h | 2.1A | 10μF | |
| CPZ9-9 | YDK250-6 | 203V-240V | 50/60Hz | 850RPM | 2000m³/h | 1.9A | 10μF |
| YDK375-6 | 203V-240V | 50/60Hz | 850RPM | 2000m³/h | 3.5A | 10μF | |
| YDK375-4 | 203V-240V | 50/60Hz | 1200RPM | 2500m³/h | 3.5A | 10μF | |
| YDK550-4 | 203V-240V | 50/60Hz | 1150RPM | 3250m³/h | 4.6A | 20μF | |
| CPZ10-10 | YDK450-6 | 203V-240V | 50/60Hz | 850RPM | 3000m³/h | 3.5A | 20μF |
| YDK550-4 | 203V-240V | 50/60Hz | 1150RPM | 3250m³/h | 4.6A | 20μF | |
| CPZ12-9 | YDK750-6 | 203V-240V | 50/60Hz | 830RPM | 3000m³/h | 7.2A | 30μF |
| YDK900-4 | 203V-240V | 50/60Hz | 1250RPM | 6000m³/h | 8.0A | 30μF | |
| CPZ12-12 | YDK750-6 | 203V-240V | 50/60Hz | 830RPM | 3000m³/h | 7.2A | 30μF |
| YDK900-6 | 203V-240V | 50/60Hz | 880RPM | 7000m³/h | 8.6A | 30μF |
In centrifugal fans, the air flows at right angles to the inlet air direction and throws the air outward toward the outlet through the action of deflection and centrifugal force. When the impeller rotates, air is allowed to enter the fan around the open space between the impeller and the shaft and is forced to proceed at a right angle to the shaft toward the opening of the fan casing. This type of fan produces, comparatively (with respect to axial fans), a higher pressure and less gas flow; they are noisier than axial fans. Radial/centrifugal fans also are classified according to their type of wheel blades.
FAQ:
Q: What information do I eed to provide in order to get a
quotation?
A: Generally, information about Power, Voltage, Frequency, Speed,
also Motor Size is needed in order to select a right fan motor for
you and provide you a quotation.
Q: Can I have a discount for the quoted price?
A: The quoted price is based on annual usage quantity. If annual
usage quantities increase, please provide the information to our
sales. We will provide you a further discount.
Q: What is the warranty of products?
A: All of our products have 24 months warranty under normal usage.
Every product has its own production code. This code is able to
track the production time.
|
