Weifang Engine Three Axles 180 Ton Precast Bridge Girder

Categories Heavy Duty Semi Trailers
Brand Name: SCEC
Model Number: SCEC-180
Certification: ISO CCC
Place of Origin: Jinan China
MOQ: 1 set
Price: Negotiable
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 units per month
Delivery Time: Within 20 work days after receive order
Packaging Details: Nude, Polished with wax before shipping on board
Trailer type: Precast Bridge Girder Transport Semi Trailers
Engine manufacturer: Weifang
Engine power: 175 hp
Allowable load: <180T
Number of tires: 24pcs
Drive form: Double bridge drive
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Weifang Engine Three Axles 180 Ton Precast Bridge Girder

Three axles 180ton Precast Bridge Girder Transport Semi Trailers Max.Loading 50m


Advantages:

1. The new appearance is fully upgraded and the vision is broad

2,Turbocharger of the Precast Bridge Girder Transport Semi Trailer,Good power performance and large torque reserve

3,big wheelbase of the Precast Bridge Girder Transport Semi Trailer, layout is reasonable, the bridge load is well distributed, the operation is stable, and the operation stability is good

4,Improved frame processing technology, high dimensional accuracy and better reliability

5,High work performance of Precast Bridge Girder Transport Semi Trailer,

6. According to the construction requirements, design, configuration modification, customized

7. Optional configuration, the wheel body is widened and thickened.


Technical specification:

Three axles 180ton Precast Bridge Girder Transport Semi Trailer
Engine manufacturerWeifang power source six-cylinder supercharger (optional Weifang East China machine)
Engine power175 hp
Allowable load<180T
Gearbox modelVice shift Dongfeng 145 with auxiliary box / main shift Faster ten speed high torque
Direction machineBZZ1-250cc
Steering cylinderOuter diameter 115mm shaft 50mm
Inflation pressure9 -11 MPa
Tire specifications1100R20 (steel wire tire)
Number of tires24pcs
Drive formDouble bridge drive
Passive beam flat car dimensions4.6* 2.9* 1.35m
Active beam flat car dimensions8 * 2.9 * 1.35m
DifferentialMercedes-Benz customized high torque
Number of axlesActive and passive three axes, a total of six axes
Idle beam feeding speedAbout 3 meters per minute
Fastest speed30 kilometers per hour
Lighting systemTwo headlights
Driving directionBidirectional
Self weightAbout 13 tons
transmissionRed Rock Drive Shaft
Brake systemDouble axle air brake for main vehicle/single axle brake for auxiliary vehicle


FAQ:
1. How to guarantee the condition and lifetime of the machine ?
A: All our exported machine are New and Original brand, pass pre-delivery quality testing!
We are responsible for our trucks and machine quality.

2. How to have after sale service from us ?
A: We have old suppliers in China, original new parts are available for us to get, with reasonable price and in short time.

3. How can customers make visit and checking in China ?
A: We arrange everything ready for your journey in China, welcome your happy visit.

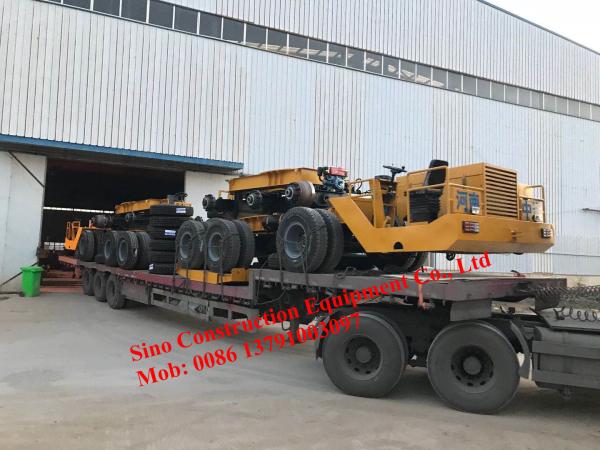

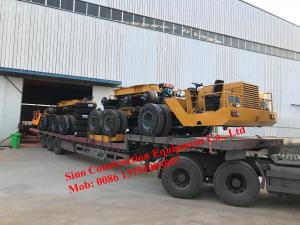

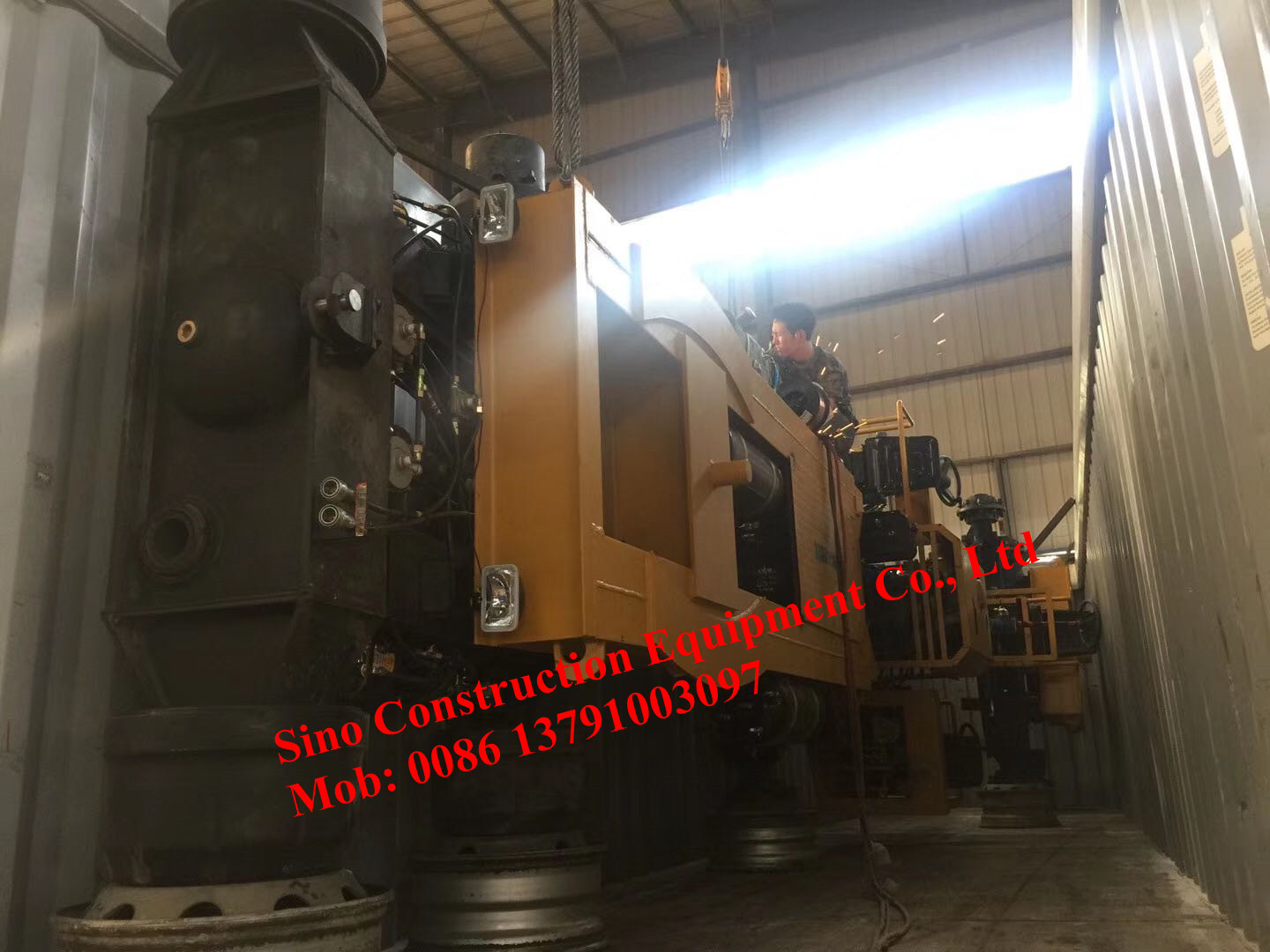

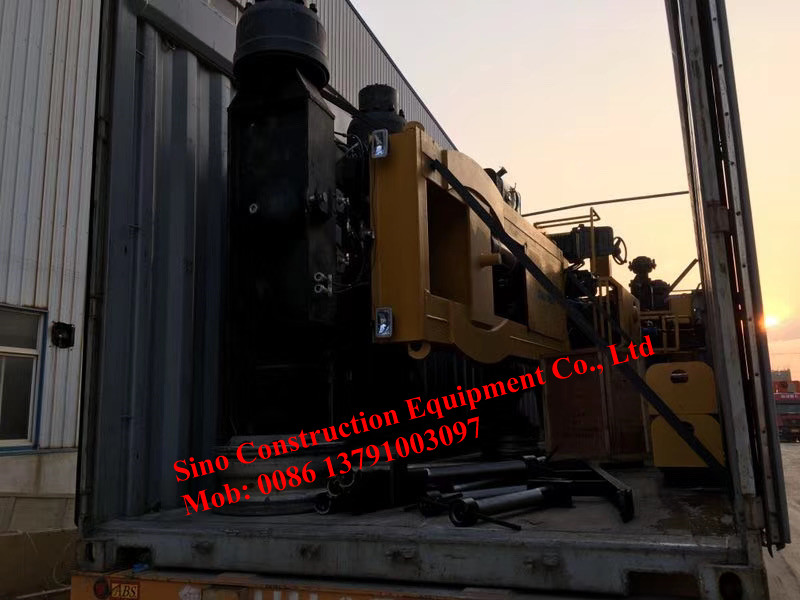

Packaging & Shipping

1.The main machine nude, attached parts and tools put into standard export box
2.Within 20 days deliver the goods to main Port
3. Ro-Ro ship or bulk ship or according to customer requiring
4.We have professional forwarding partners
