9G-5321 O Ring Oil Seal Kits , CAT CR3621 Floating Seal Ring

Categories Floating Oil Seal
Brand Name: HQPA/OEM
Model Number: 9G-5321
Certification: ISO9001
Place of Origin: CHINA(MAINLAND)
MOQ: Negotiation
Price: Negotiable
Payment Terms: Western Union, L/C, T/T, MoneyGram, D/A, D/P
Supply Ability: 500 Sets per Week
Delivery Time: 3-5 days after payment received(public holiday excluded)
Packaging Details: PP bag inside, carton box outside
Name: O Ring Oil Seal
Part No.: 9G-5321
Lifetime: 5000Hours/8000hours
Hardness: 58-62HRC/62-68HRC
Material: Steel 100CR6 + NBR60
Process: Forging & Casting
Warranty: 18 months
Application: CAT CR3621
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

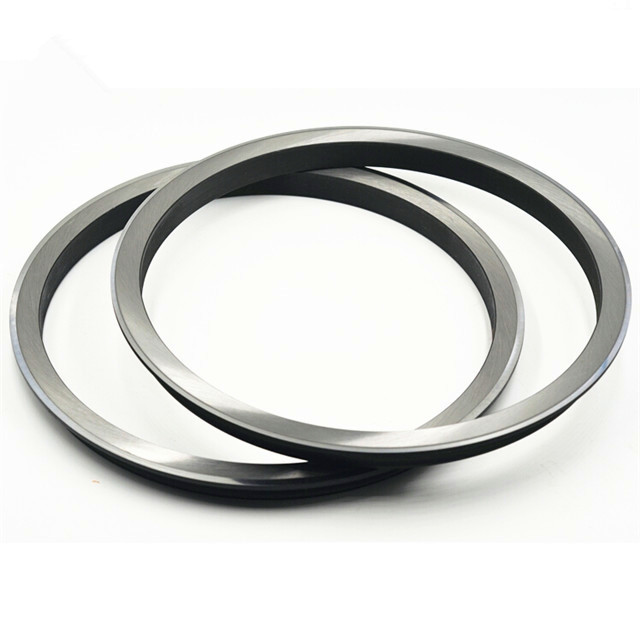

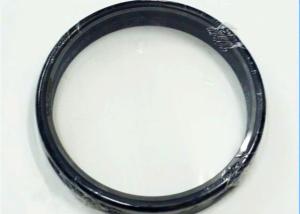

9G-5321 O Ring Oil Seal Kits , CAT CR3621 Floating Seal Ring

9G-5321 O Ring Oil Seal Kits , CAT CR3621 Floating Seal Ring


O Ring Oil Seal are precision components, the smallest of material and design details can influence the quality.The metal
ring is processed by CNC machine,the fine precision increase O-ring gripping ability,eliminating O-ring sliding,ensure runs
smoothly.

O Ring Oil Seal Application

Designed for use in transmissions, pumps, axles, wet braking systems, axles, rollers, and final drives; these seals are developed using special cast iron materials resulting in extraordinary wear-resistance. Mechanical Face seals have proven beneficial in gearboxes, mixers, stirrers, wind-driven power stations as well as other applications requiring maintenance-free lifetime sealing.
OEM part#9G-5321 SEAL GROUP for CAT CR3621
One setConsists of two metal sealing rings and two rubber rings
Material100CR6 steel + NBR60
Warranty18 months
StockAvailable
FOBWuhan ,Shanghai ,Qingdao ,Ningbo ,Shenzhen ,Xiamen
PackageShrink films + inner box + standard export carton + wood pallet + wood box
ApplicationConstuction machinery ,farm machinery ,coal mining machinery 

1.Metal:Steel Gcr15/100cr6 and cast iron 15Cr3Mo
METALSteel Gcr15/ 100Cr6Cast 15Cr3Mo
Surface smoothness/roughness ≤Ra0.2μm6.3-12.5μm
Work face smoothness≤Ra0.15μm≤Ra0.1μm
Pressure loading≤0.15MPa≤0.3 MPa
Forging line speed2m/s3m/s
Temperature range-100~200°C-40~160°C
Hardness (HRC)58-6265-68
Lifetime (Hours)3000-50005000-8000
2.Rubber ring: NBR60, silicone and FKM rubber rings
MaterialNBR60SILICONEFKM
Hardness60°-65°60°-65°72°-78°
Minimum tensile strength11MPa10.6MPa11MPa
Minimum elongation at break300%400%260%
Permanent deformation 12%8%25%
Temperature range-42℃-120℃-49℃-230℃-30℃-250℃
Specific Gravity1.251.21.8

Method of installation:


1.Usingspecialized equipment installation: The pressure will apply to the O-ringdirectly. As shown, the special tool is placed between the metal hole ring and the rubber ring, towards the seat hole, the rubber ring is pressed evenly into the hole.

2. Other methods: An auxiliary O-ring is fixed between the sealing surface of the floating oil seal and the C-ring (as shown). The floating oil seal ring is applied equally by pressure and auxiliary O-ring braces. Sealing the O-ring to ensure other mounting positions.


OEM covers


ModelOEM Codes
Komatsu

195-30-00302, 154-30-00831 , 141-30-00616 , 150-27-00017, 207-27-0001, 130-27-00140, 130-27-0001, 14X-27-00101, 150-27-0002, 170-27-00020, 423-33-00020, 17M-27-00101, 287-33-00010, 425-33-00110, 568-33-00016, 209-27-00160, 141-27-00010, 130-27-B0100, 180-27-00021, 175-27-00121,

140-30-00040 , 130-27-00010 , 150-30-00035 , 170-27-00010...

Kobelco

R45P0018D, R45P0018D6, 45P0018D18, R45P00018D9,R45P0018D25,

R45P0018D12, R45P0018D27, R45P0018D13, R45P0018D14, R45P0018D15, R45P0018D16, R45P0018D18, R45P0018D29, R45P0018D21, YN53D00008S023, R45P0018D22, R45P0018D28...

CAT1M8746, 9W7225, 9W7220, 8E5609, 8E 5610, 9W 7232, 2M 2858, 9W 7223, 9W 6649, 1M 8747, 9W 6647, 9W 6648, 6V2733, 9W7233,1M 8746, 2P 3395, 1P 7249, 5P 7147, 3P 0433, 5P 9120, 9W 6645,9W 6666, 5K 1078, 9G 5314, 5M 1176, 9W 6674, 9G 5317, 9W7201...
Hitachi

4283635, 4176379 , 4177260 , 4082631, 4642180, 4110363, ES-110,

4110362, 4153732, 4508193, ES-209, 4114753, 4514259, ES-250, 4179741, 4066695, 4138544, 4350347, 4082698, ES-56, ES-64...


Advantage
1, Competitive Pricing, 30% - 50% lower than the original parts
2, ISO certified Products
3, Experienced team with years of knowledge
4, In-House engineering and Design Capabilities
5, Just-in-time Inventory Programs for OEM/OES
6, MOQ 1 Set
