Hdg Zlp630 Zlp800 Suspended Work Platform Temporary Gondola Cradle

Categories Gondola Suspended Platform
Model Number: ZLP630/ ZLP800 / ZLP1000
Place of Origin: HEBEI ,CHINA
MOQ: 1 SET
Price: 1900~2700 usd/set
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200 SETS / MONTH
Delivery Time: 5`10 working days, which will be adjusted according to different products and inventory
Packaging Details: LCL : GOODS WILL BE PACKAGED BY PLYWOOD BOX ; CONTAINER DELIVERY : GOODS WILL BE PACKAGED BY PALLET
Model: zlp630/zlp800/zlp1000
Material: Hot dip galvanized steel / coated steel / aluminum alloy
Length of Gondola: 2m~10m
Working height: 100m, Max 200m
Loading capacity: 150kg~1000kg
Voltage: 220v /380v/ 415v 50/60hz
Power: 1.5kw / 1.8kw / 2.2kw
Warranty: whole machinery is for 1 year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Hdg Zlp630 Zlp800 Suspended Work Platform Temporary Gondola Cradle

ZLP630 ZLP800 Temporary Gondola Cradle Suspended Work Platform


Introduction of Gondola Suspended Platform

Gondola suspended platform series temporarily installed suspended access equipment is an electrically hoisted construction and maintenance platform. It is primarily used for external wall construction, cleaning, and maintenance for high-rise and multi-story buildings. It is also used in elevator installation, large tanks, bridges, dams, and other large-scale engineering applications. all item include:ZLP 500. ZLP 630. ZLP 800 ZLP 1000, material have steel suspended platform. aluminum suspended alloy and galvanized suspended platform.


Parameters of Gondola Suspended Platform

The Parameters of ZLP series Suspended Platform
TypeZLP500ZLP630ZLP800
Rated Load500kg630kg800kg
Lifting speed9.3m/min9.3m/min9.3m/min
Lifting height100m100m100m
HoistLTD63LTD63LTD80
Voltage-3 Phase380V(415V/220V) 50HA/60HZ
Power1.5kwx21.5kwx21.8kwx2
Safety LockLS30LS30LS30
Electric Control panelSchneider or CHNTSchneider or CHNTSchneider or CHNT
Platform Sise (LxWxH)(2.5+2.5)x0.69x1.18m(2+2+2)x0.69x1.18m(2.5+2.5+2.5)x0.69x1.18m

Steel Wire Rope

4pcs; 100m/pcs

D=8.3mm; 4x31SW+FC

4pcs; 100m/pcs
D=8.3mm; 4x31SW+FC
4pcs; 100m/pcs
D=9.1mm; 4x31SW+FC
Electric Cable(3x2.0+2x1.0) 100m
Counterweight (Optional)Cement, 750kgCement, 1000kgCement, 1000kg

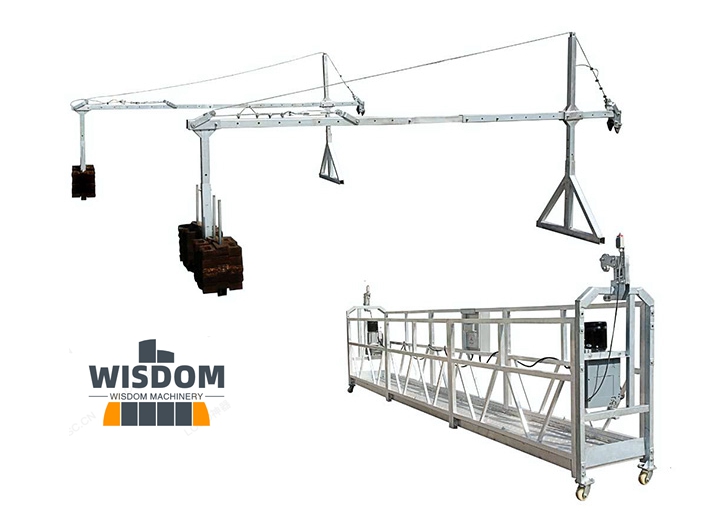

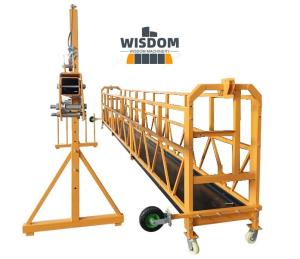

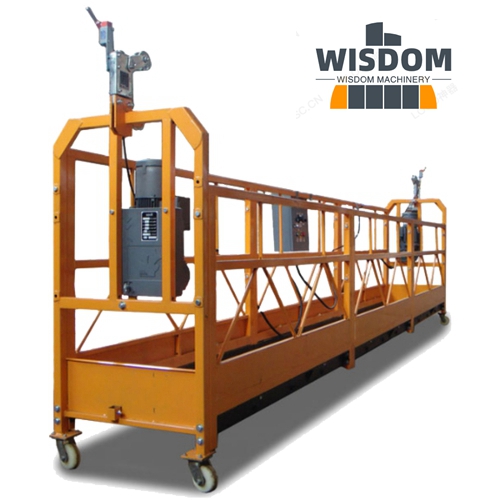

Pictures of Gondola Suspended Platform

Quality Hdg Zlp630 Zlp800 Suspended Work Platform Temporary Gondola Cradle for sale
