Desktop SWAE Software Acoustic Emission Detector with 5V 28V Phantom Power and Multi-Channel Waveform Display

Desktop SWAE Software Acoustic Emission Detector
SWAE is professional software developed by Qingcheng AE Institute for processing, displaying, storing, and replaying acoustic emission signal features and waveforms. The software features a user-friendly interface that is easy to learn and operate, with configurable settings to fit various applications. When combined with SAEU3H detector or RAEM series monitor, SWAE meets the most demanding requirements of industrial applications and laboratory research.

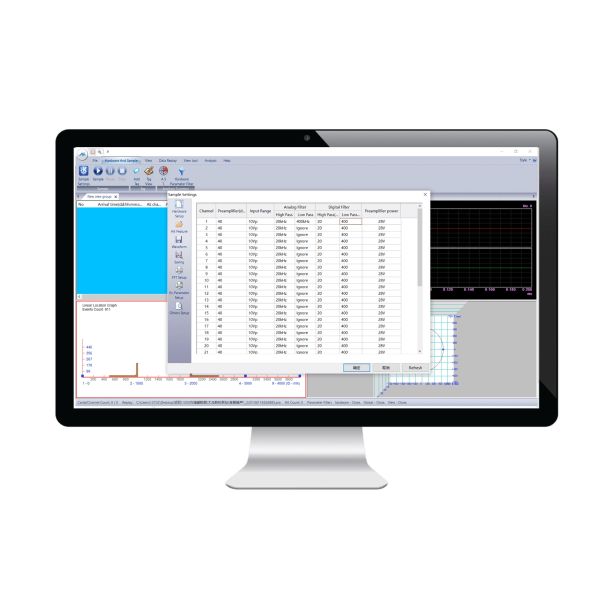

SWAE Software Interface - Acoustic Emission Detection System
Advanced Firmware Configurations and Acquisition Settings
  • Multiple combinations of analog and digital filters
  • 0V, 5V, 28V phantom power supply options
  • HIT feature settings: Threshold, HDT, HLT, PDT
  • Comprehensive waveform acquisition settings including triggering mode, sampling rate and length, and pre-sampling
  • Separate storage of parameters and waveforms
  • FFT settings and extended parameters configuration
  • Real-time tag addition during collection
  • AST pulse width and pulse interval settings with automatic channel testing
SWAE Software Multiple View Display Options
Comprehensive View Display Options
  • Customizable interface layout and background colors
  • Parameter acquisition customization: AMP, ASL, Energy, Duration, Counts, Rise time, RMS, Rise counts
  • Simultaneous multi-channel waveform display
  • Customized parameter correlation graphs, histograms, scatter diagrams, linear graphs with color selection
  • Real-time FFT and full waveform display
  • 3D positioning diagram with full-screen zooming capabilities: linear, planar, cube, cylinder, tank bottom, sphere location
  • Alarm display based on parameter settings
  • Full screen display option
SWAE Software Full Replay Functionality
Complete Replay Functionality
  • Simultaneous or separate replay of parameters and waveforms
  • Waveform generation from parameters
  • Parameter re-filtering as required
  • Adjustable replay speed settings

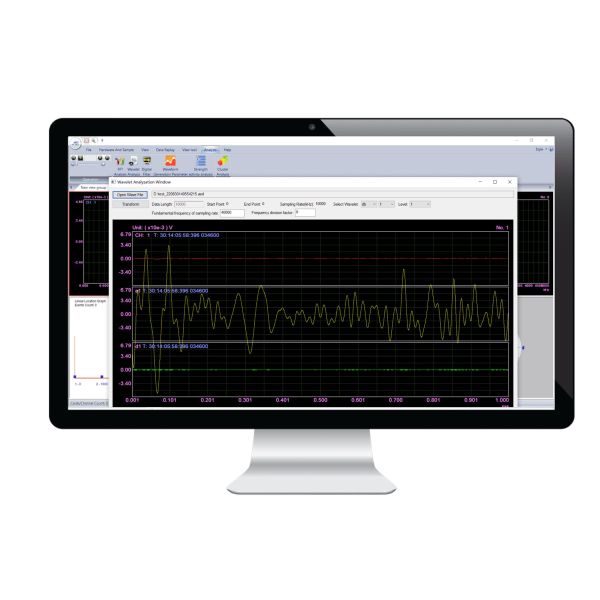

SWAE Software Multiple Data Analysis Tools
Multiple Data Analysis Tools
  • FFT analysis
  • Wavelet analysis
  • Intensity and activity analysis
  • Clustering analysis
