Auto POCT Dry Biochemistry Analyzer in whole blood, plasma and serum

SD1 FULLY AUTOMATED DRY BIOCHEMISTRY ANALYZER

Equipped with the latest medical and technological innovations, we have
invented a state-of-the-art portable SD1 auto dry biochemistry analyzer
which provides a better, faster and more accurate diagnosis for blood analysis.

Test results in 12 minutes
Test up to 34 parameters in total

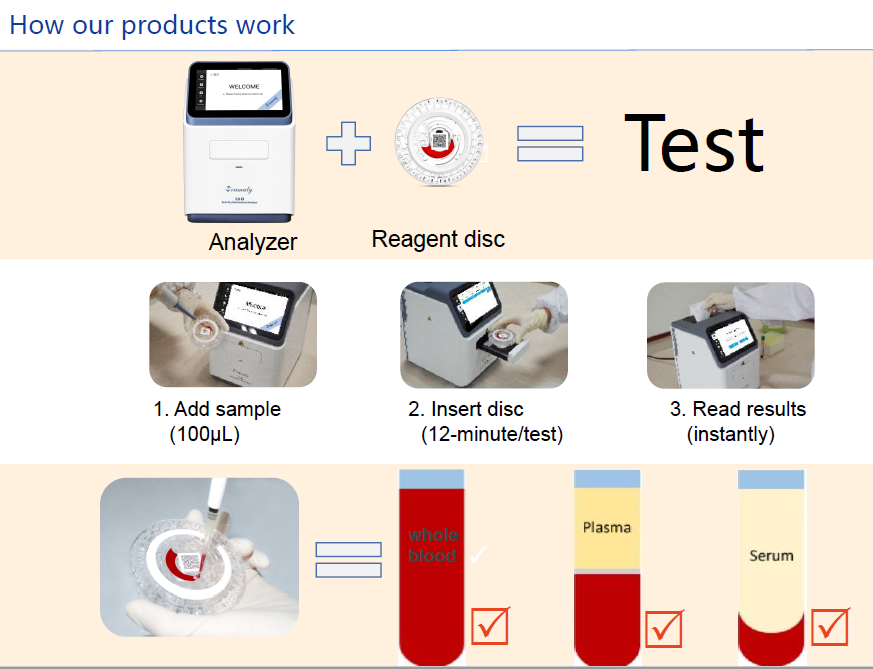

3-step simple operation


Low Sample Consumption
Sample Volume needed is 1/10 - 1/20 of conventional chemistry analyzer.
Easy to Use
No professional skill required.
Maintenance Free
Robust analyzer, no consumables needed, such as tubes, pumps and valves.
Accurate Result
Using the photoelectric colorimetric principle, the SD1 analyzer has many advantages versus conventional
dry biochemistry analyzer using the light reflection method. Dilution of test sample is guaranteed without
random errors or cross contamination.

ADVANTAGES
Sample volume: 100μl
Bar code: QR code
Testing time: 12 minutes / sample
Temperature: 37℃±0.3℃
Resolution: 0.001Abs
Absorbance: 0-3.0Abs
Sample type: Anti-coagulation whole blood,
serum, plasma
QC&Calibration: IQC (Intelligent Quality Control)
Work condition: Temperature:10-30℃ Humidity: 30%-70%
Testing principle: Absorption spectroscopy,
transmission turbidimetry
Testing method: End point, kinetic, fixed time,
turbidmetry etc
Light source: 12V/20W, Halogen tungsten lamp with life
span over 2500 hours
Power supply: AC 100V-240V, 50-60Hz
Power: Output: 15 7.0a, 105W MAX
Display: Android 7.0 inch 800*480, multi-point
capacitive touch screen, multilingual choice
Storage: 500,000 results
Printer: Built-in thermal printer
Interface: 4 USB ports, 1 LAN port
Dimension: 315*375*475mm. 4.2kg(N.W.), 7kg(G.W.)
