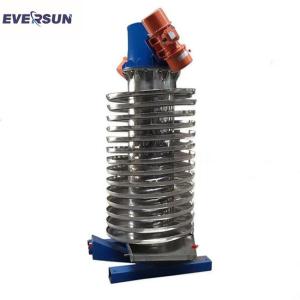

CCarbon Steel Auger Screw Conveyor Cooling Function Spiral Elevator For Rock Salt

Product introduction

Carbon Steel Auger Screw Conveyor Cooling Function Spiral Elevator For Rock Salt

Spiral elevator using vibration motor as vibration source, the use of two vibration motor synthesis amplitude, the material along the spiral conveyor groove up. Spiral elevator is mainly used to lift granular, powdery, block materials. The conveyor has the advantages of simple structure, easy maintenance, material quantitative delivery, continuous adjustable throughput, can be used as a vertical conveying of small particle materials in various industries. In addition to lifting the material from the bottom up, it can also complete the drying and cooling effect of the material. Separate trough type, closed two kinds of structure, and according to the requirements of different processes, the design of material particle classification effect screening hoist and the design of flammable and explosive material hoist. Spiral elevator(conveyor) is widely used in chemical industry, rubber, plastics, medicine, light industry, food, metallurgy, building materials, mining, food and other industries.

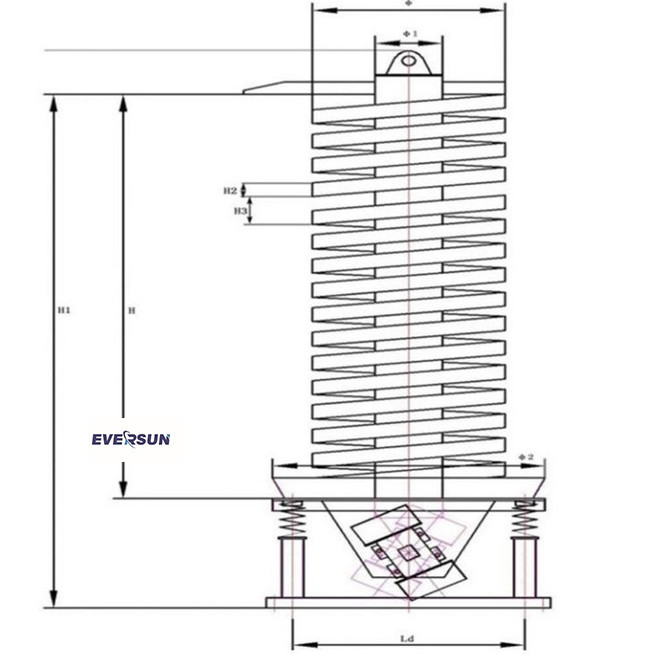

Product parameter

Advantages

1. When the vertical elevator is working, the return of the shelf does not occupy the working beat, and the conveying efficiency is high, and is not affected by the high-speed conveying.

2. Can only transport goods, and the material has the minimum size limit.

3. Large bearing range, up to 2000Kg.

4. Matching with the inlet and outlet conveying equipment, the conveying process can realize complete automation and avoid the instability brought by manual operation.

5. Compact structure and small footprint.

6. Safe and reliable, easy to maintain, low operating cost, effectively reduce the transportation cost.

Working principle

---

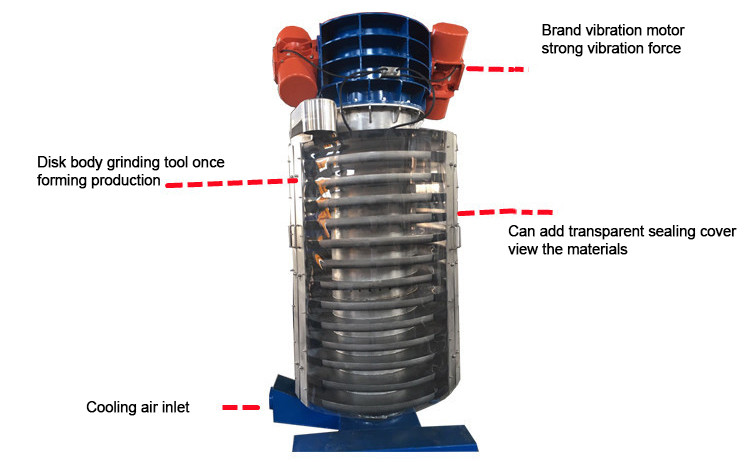

The vibration motor of the driving device of the spiral elevator is installed in the lower part of the conveying tower, and the two motors are symmetrically cross-mounted. The conveying tower is composed of the tube body and the spiral conveying groove welded around the tube body. The conveying tower is located on the damping device, which is composed of the base and the vibration isolation spring. When the spiral elevator work, according to the principle of double vibration motor synchronization, vibration motor generated by vibration force, forcing the whole conveying tower for horizontal circular motion and vertical motion upward space complex vibration, spiral groove material is by the role of the conveying groove, uniform throwing circular motion, along the conveying tank body upward movement, so as to complete the material up (or down) conveying operation.

How to choose the right machine

You need to tell us the material you want to handle, the throughput you want to achieve, the width and height of the delivery and so on. please contact us ,Our engineers will provide suitable machine model based on the use condition.

Who are we:

EVERSUN Machinery, founded in 2003, is a professional manufacturer of screening and conveying equipment in China. It is also iso9001:2015 quality management system certification and CE certification company.

Eversun Machinery is committed to providing screening and conveying technology solutions to our customers. Whether you are in food, chemical, pharmaceutical or other industries, whether you want to separate solid particles from solid or liquid, we will provide screening and transportation solutions according to the characteristics of different industries and materials to meet the requirements of customers. And improve efficiency and product quality.

For screening and conveying solutions, please contact us at.

What do we produce:

Our products include: screening machine, drum screening machine, ultrasonic vibrating screen, liquid filter, linear screening machine, vacuum conveyor, dumping station, grinder, etc.

And can customize various machines.

Our services:

EVERSUN Yongsheng Machinery has the ability to serve customers all over the world, whether it is on-site maintenance, installation and commissioning, or after-sales accessories. And any electrical and safety standards. Our price and delivery ability have also been highly praised by customers

Professional OEM factory:

As one of the largest OEM factories in China, we provide about 5000 machines to more than 150 dealers, manufacturers and traders every year, and provide a variety of reliable customized equipment to help our customers build their own brands.
