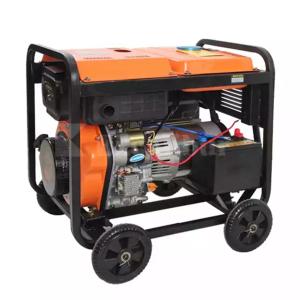

10 Kva 3kw Open Diesel Generator Recoil Start Electric Start

10 Kva 3kw Open Diesel Generator Recoil Start+Electric Start

Coordinated control of battery energy storage and diesel generator in independent AC microgrid

In the independent AC microgrid system, the coordination control between the diesel generator and the battery energy storage is the key to ensure the stable operation of the system. Based on the fast response characteristic of battery energy storage, a coordinated control method of diesel generator and energy storage battery was proposed. When the diesel generator is used as the main power supply, the auxiliary power control signal is introduced into the traditional droop control of the energy storage system to prevent the system collapse caused by the diesel engine overcurrent for a long time and improve the system stability. Aiming at the short-time power outage problem when the main power supply in the microgrid changes from the energy storage system to the diesel generator or from the diesel generator to the energy storage system, a seamless switching control strategy of the two main power supplies of the diesel generator and the energy storage battery is proposed.

Modeling and operation simulation of Marine Diesel generator Set

The operation process of Marine diesel generator set is an important part of power plant operation. The number of diesel generators operating in parallel determines the capacity of a Marine power station. The stability of parallel operation is closely related to the stability of Marine power station. It is of great significance to establish a mathematical model which can accurately reflect the operation of diesel generator set for operation control, simulation and performance analysis of power station. The study of parallel operation of diesel generator sets involves the establishment of diesel generator model, parallel operation control model and electric load model. Although there are some different modeling methods for diesel generator model, most of them are limited to single model simulation. Taking diesel generator model as the core, the mathematical model of parallel operation of multiple diesel generator sets is established. Taking the "Yu-kun" ship power station as the reference object, the diesel generator model, power load model and parallel operation control system model are established respectively.

Products Description:

GENERATOR	Model	GSKA-8500SE
	Frequency(HZ)	50	60
	Max. output(kw)	6.5	7.0
	Rated output(kw)	6	6.5
	Rated. AC voltage(v)	120, 220, 230, 240
	Power factor(cosΦ )	cosΦ =1
	DC output (v)	12V/8.3A
	Phase	Single phase
	Alternator type	self-excited, 2-pole, single phase alternator
	Starting system	Electric
	Operating noise level(at 7m)	68~72
	Fuel tank capacity(L)	16
	Continues work(hr)	7.8	7.4
ENGINE	Model	HR192FB
	Engine type	Single-cylinder, vertical, 4-stroke air-cooled diesel engine
	Bore× stroke(mm)	92×75
	Fuel	0# or -10# light diesel fuel
	LubriCAT-parts-partsion oil volume(L)	1.65
	Combustion system	Direct lnjection
STANDARD FEATURES	Voltmeter	yes
	AC Output Socket	2
	AC circuit breaker	yes
	Oil warning light	yes
	Oil alert	yes
OPTIONAL FEATURES	DC circuit breaker	optional
	Calculagraph	optional
	Big Wheel	optional
	Three phase voltage	optional
	Current meter	optional
	ATS	optional
	Remote control	optional
	Welding	optional
DIMENSIONS	Dimension(L× W× H)(mm)	910× 535× 700
	Net weight(kg)	155
	20FT	72
