| Categories | Magnetic Particle Testing |
|---|---|
| Brand Name: | HUATEC |
| Model Number: | CX-430 |
| Certification: | ISO, CE, GOST |
| Place of Origin: | Beijing |
| MOQ: | 10pcs |
| Payment Terms: | T/T, Paypal, Western Union |
| Supply Ability: | 500pcs per month |
| Delivery Time: | 1-4days |
| Packaging Details: | Standard export package |
| Material: | DT4A electromagnetic pure iron plate |
| Color: | Metal surface presents bright silver, no rust.no scratch, no corrosion and so on |
| Planeness: | Put the test piece on bare board, parallel completely.no wrinkle.no burts.the surface’s roughness RA is 0.005inch |
| Flaw depth: | 30% Shim thickness, 0.004" thick |
| diameter of symbol: | 0.235inch |
| thickness of test piece cx4-230: | 0.004inch |
| groove depth: | 0.0006inch |
| groove width: | 0.006inch |
| Product name: | Quantitative Quality Indicators |
| Company Info. |
| HUATEC GROUP CORPORATION |
| Verified Supplier |
| View Contact Details |
| Product List |
ASME-2007 Quantitative Quality Indicators Magnetic Flux Indicator QQI Test Shim CX-430

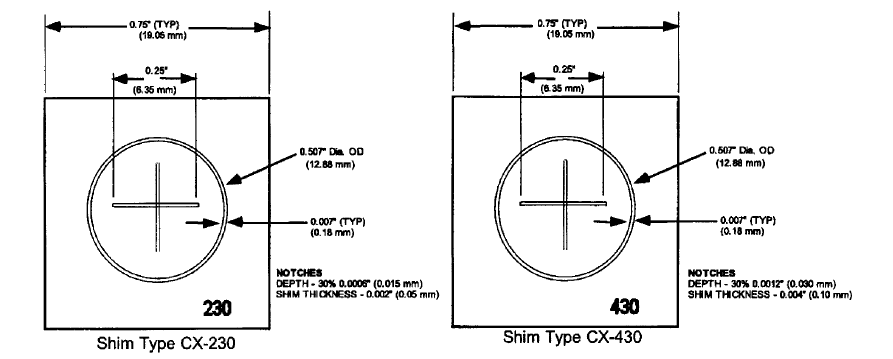

QQI's (Quantitative Quality Indicators) are magnetic particle test pieces with artificial defects used to verify proper field direction and adequate field strength. QQI's are a valuable tool to be used to establish testing criteria with Multi-Directional 2-D and 3-D type testers and to increase productivity by minimizing magnetizing shots.
QQI's are both thin and flexible to conform to the geometry of the test piece. They must be held in intimate contact with the test piece by either tape or glue.
| Inspection items | The condition, method and demand of the test | Inspection demand | |
| Color | Metal surface presents bright silver, no rust.no scratch, no corrosion and so on | Passed muster | |
| Planeness | Put the test piece on bare board, parallel completely.no wrinkle.no burts.the surface’s roughness RA is 0.8um | Passed muster | |
| The size of sheet iron and cutting groove | The side length of test piece tested by milscale is 0.75in×0.75in.the average thickness of test piece CX-430 is 0.004in .The artificial defect symbol “o”and symbol“+”tested by precision microscope are both on the center of the test piece. The diameter of symbol four“o”is 0.507in,symbor“+”is 0.25in. The thickness of test piece CX-430 is 0.004in.the groove depth is 0.0012in, the groove width is 0.007in. | Passed muster | |
| Quality | The physics and chemistry test show the result that the metal is made from DT4A electromagnetic pure iron plate. The analytic result of raw materials accords with the rule of GB6985, | Passed muster | |
MT test block
Type N1: 45N, 5kgs
Type N2: 118N 12kgs
Type N3: 177N 18kgs
MT standard block

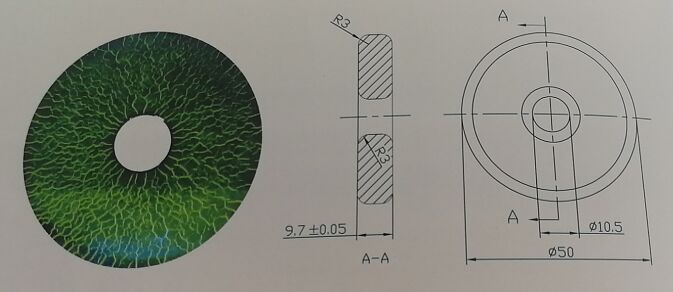

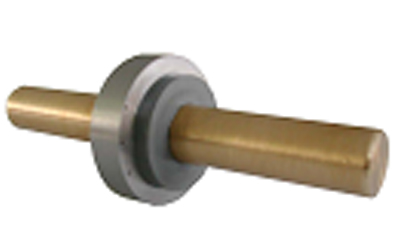

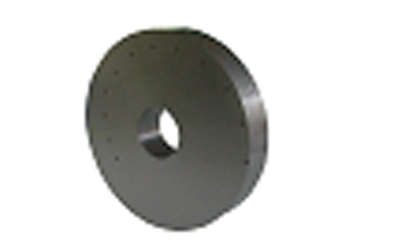

Katos rong type B: DC HRC=90～95, 12 drilling through holes diameter 0.07inch, center hole diameter 31.8mm
Type E: AC
MTU test blcok
|
20-0-20 Gs Pocket Magnetic Strength Meter Gauss Meter Magnetic Filed Indicator
Portable MT Flaw Detector Magnetic Particle For Aviation
UV Radiometer UV-A Ultraviolet Irradiance Meter UV Light, Ultraviolet Illuminometer
MT Test Specimen Of Magnetic Particle Testing
Magnetic Field Indicator Of Magnetic Particle Testing
Handy Magna Yoke Kit Magnetic Particle Testing For Surface Crack Testing
Handheld Ultraviolet Lamp Magnetic Flaw Detector Testing UV A Light
Permanent Magnetic Particle Testing , Handy Yoke Flaw Detector Yoke kit
360g Magnetic Particle Testing Handheld Ultraviolet LED UV Torch Light DG - 3W
Black Handheld Ultraviolet Lamp , LED UV Light handheld uv light liquid penetrant testing equipment
