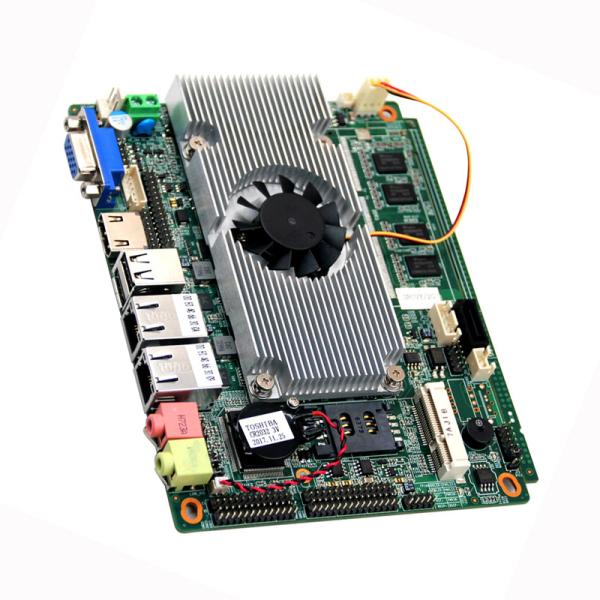

3.5 Inch X86 Industrial Dual Gigabit Lan Motherboard Atom N2800 Onboard 2GB DDR3 RAM of industrialpcmotherboards

Home > Motherboards >

3.5 Inch X86 Industrial Dual Gigabit Lan Motherboard Atom N2800 Onboard 2GB DDR3 RAM

Categories	3.5 And 4 Inch Motherboard
Brand Name:	VEGASHINE / OEM
Model Number:	EC-P6802D-CDV
Place of Origin:	Shenzhen China
MOQ:	1 unit
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000 units per Month
Delivery Time:	3 to 10 work days
Packaging Details:	Carton
CPU:	Intel® Atom N2800 dual core four threads 1.86GHz Processor
RAM:	Onboard 1333 DDR3 2GB/4GB
Display:	1VGA, 1LVDS, 1*HDMI
Ethernet:	2*Gigabit LAN
COM:	6*COM
USE:	8*USB 2.0
Power:	DC 12V 5A/7A
Size:	154.8 x 117.4 mm

Contact Now

Add to Cart

Company Info.

SHENZHEN VEGASHINE TECHNOLOGY CO.,LIMITED

Verified Supplier

Haven't found right suppliers

Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.

And this service is free of charge.

we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

3.5 inch X86 industrial motherboard Atom N2800 onboard 2GB DDR3 dual gigabit LAN 6 COM

Notice:

When you inquiry , you can choose the following Model :

EC-P6802D-CDV-D2550 , Integrated Intel Atom® Processor Cedarview D2550 dual core 4 threads 1.86Ghz

EC-P6802D-CDV-D2700 , Integrated Intel Atom® Processor Cedarview D2700 dual core 4 threads 2.13Ghz

EC-P6802D-CDV-N2600 , Integrated Intel Atom ® Processor Cedarview N2600 dual core 4 threads 1.6Ghz

EC-P6802D-CDV-N2800, Integrated Intel Atom® Processor Cedarview N2800 dual core 4 threads 1.86Ghz

Atom N2800 cpu 3.5 inch X86 industrial motherboard onboard 2GB DDR3 dual 1000M LAN 6 COM

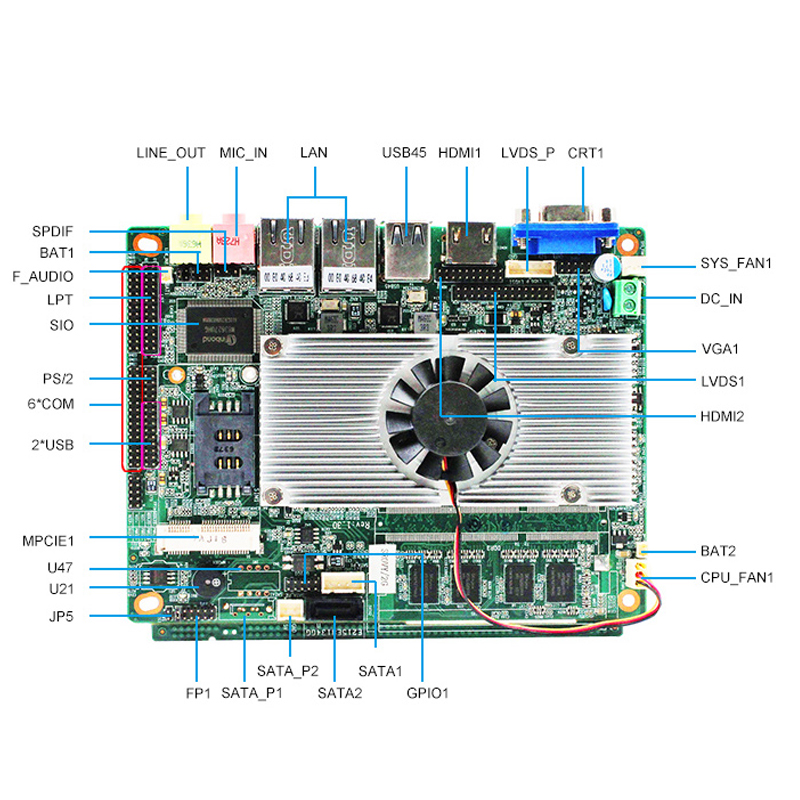

Key features

Integrated Intel® Atom N2800 dual core four threads 1.86GHz Processor

Onboard 1333 DDR3 2GB/4GB memory

Build-in Intel GMA3650 Graphics Core

Support 1*VGA, 1*LVDS, 1*HDMI

Support Double display support

6*COM, 2*Gigabit LAN, 8*USB2.0,

2*SATA2.0, 1*mSATA

Onboard HD ALC662 chipset

Onboard 3G/4G SIM socket

Single input DC power supply 12V5A/7A

Size: 154.8 x 117.4 mm

Specifications

Processor	CPU	Integrated Intel® Atom N2800 dual core four threads 1.86GHz Processor
	CPU Package	BGA559
	Chipset	Intel NM10 Express Chipset (Intel CG82NM10 PCH)
	BIOS	AMI EMI 16MB SMT/DIP-SPI Flash ROM
RAM	Technology framework	Signal Channel DDR3 1066/1333MHz,maximum up to 4GB.
RAM	Capacity	2GB/4GB
Video	Graphic controller	Intel GMA3650 Graphics Core(DVMT Max 384MB)
	LVDS	24bit Single Channel LVDS
	VGA	Resolution maximum:1366*768
	HDMI	Resolution maximum:1366*768
	Double display support	VGA+HDMI/VGA+LVDS/LVDS+HDMI, Synchronous or asynchronous display
Network	Controller	RTL8111EL LAN,support RTL/PXE diskless booting
Radio	Controller	Realtek HD ALC662 chipset,provide 6 channels output(line-in,line-out,Mic)
Hardware monitor	Watchdog & Timer	0~255 timer (Watchdog code optional)
	Cooler	Aluminum alloy heat sink with fan
Input/Output Interface	USB	8*USB2.0, Max. Current supported 5V/1A
	Series	5RS232 ,1RS232/485 optional, RS485 supported automatic flow control
	PS/2	1*PS/2 expansion header
	GPIO	8bit (4pin in/4pin out)/ 3.3V@24mA / Sample code optional/Free definition of input/output
Extended bus	mPCle	1*miniPCIE socket ,supported PCIE and USB device
Storage	SATA	2*SATA2.0 Maximum transmission rate 3Gb/s
Storage	M-SATA	1*mSATA socket ,Supported SANDISK protocol ,Max. transmission rate 3Gb/s
Power Supply	Power Type	Single input DC power supply ,DC12V5A/7A
Power Supply	Power consumption	35W
	Working Temperature	-20°C~70°C (-4°F~158°F)
	Storage Temperature	-20°C~80°C (-4°F~176° )
	Operating Humidity	10%~90% (non-condensing)
