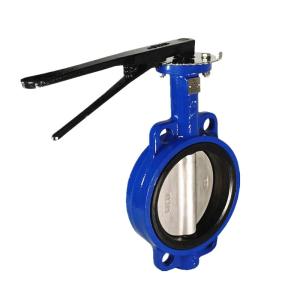

Ductile Iron Butterfly Valve Lever Operation Wafer Type

Wafer type butterfly valve

1. PROFUCT PROFILE

Wafer type butterfly valve is one type of central lined butterfly valve, which is one normal type of butterfly valve in need of big quantity.Butterfly valve flange type has its flanges with holes. The pipe end to be connected to the valve is also designed with a flange and holes of the same size as those on the flanged valve. The valve is secured on the piping system using bolts and nuts.Prosper Flow can produce the wafer butterfly valve rubber lined in accordance with EN593, API609 and AMSE B16.34.

2. FEATURES

· Compact structure and Light weight, easy installation.
· Small operating torque, convenient operation, labor-saving and smart.
· Machined disc ensures lower and regular torque​Fully coated body avoids corrosion

· With its compact design saves space, light weight, easy to install and budget friendly

· Standard version is with hand lever. With the intermediary lock positions on the lever, possible to x the on desired position

· The sealing material has the characteristics of aging resistance, weak corrosion resistance and long service life.

3. TECHNICAL SPECIFICATION

· PN10 / PN16 / 125LB / 150LB / JIS10K / 150PSI / 200PSI

· Size: 1-1/2″~40″ (40~1000mm)

· Materials: A126 B (GG25), A536 65-45-12 (GGG40/50)

· Epoxy coating with thickness ≥ 250μm

· Working temperature: 0℃~+80℃

4. STANDARD

· Design and Manufacture Conform to EN 593, API609, JIS

· Flange dimensions Conform to EN 1092-2 PN10, PN16, JIS5K, JIS10K,ANSI B16.1,DIN2501,BS4504

· Face to Face dimensions Conform to EN558 series

· Top Flange dimensions Conform to ISO5211

· Testing Conform to API598,EN12266-1

5. APPLICATION

1. Water works, water projects
2. Environment protection
3. Public facilities
4. Power plant
5. Real estate
6. Petroleum, chemical industry
7. Steel work, metallurgy
8. Paper plant
9. Food & beverage
10. Water treatment plan
