Triangle 60m/S Metal Roof Solar Mounting System Adjustable Standing Seam

Adjustable Triangle Metal Roof Mount system Tin Roof Commercial solar photovoltaic system

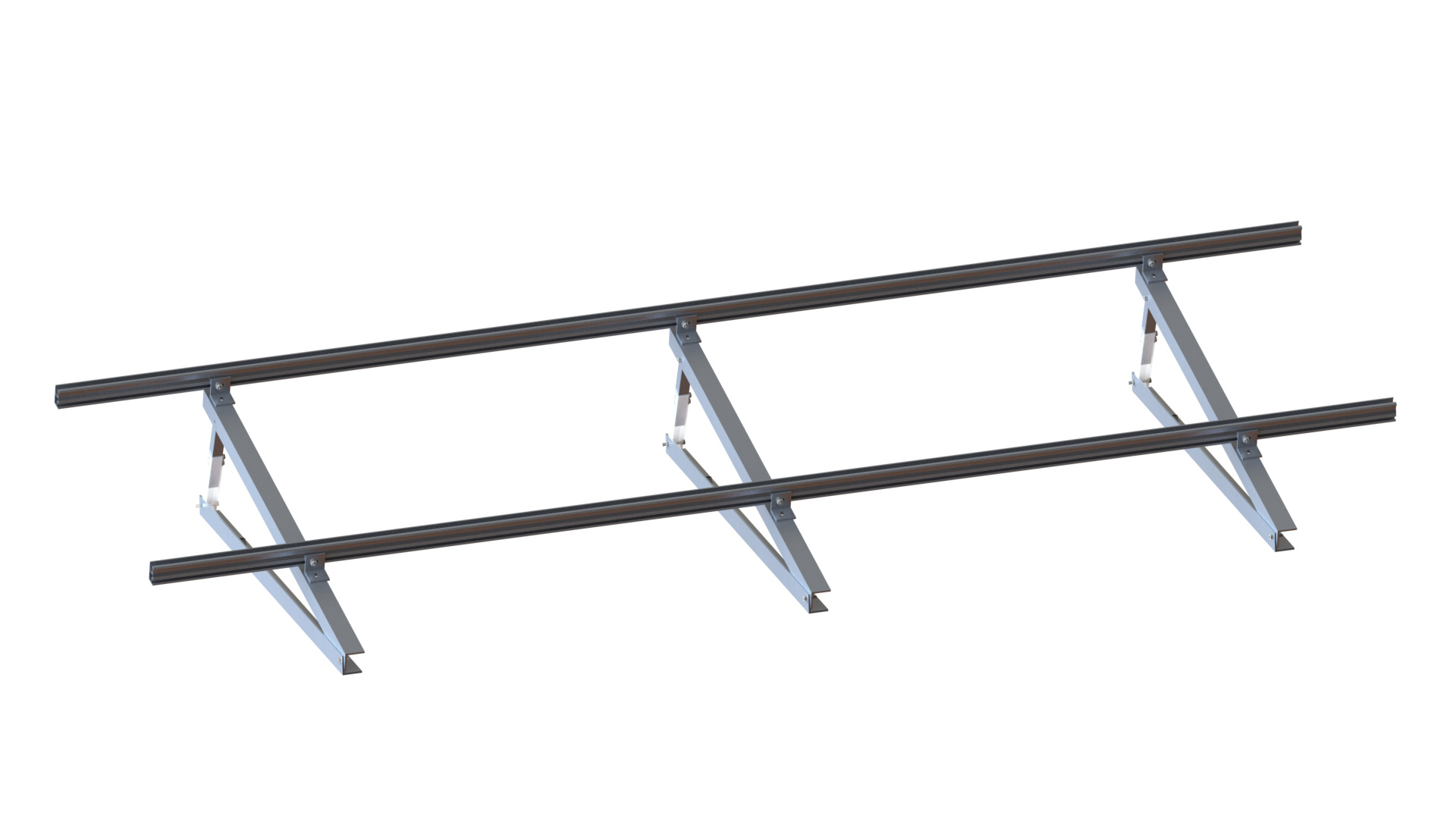

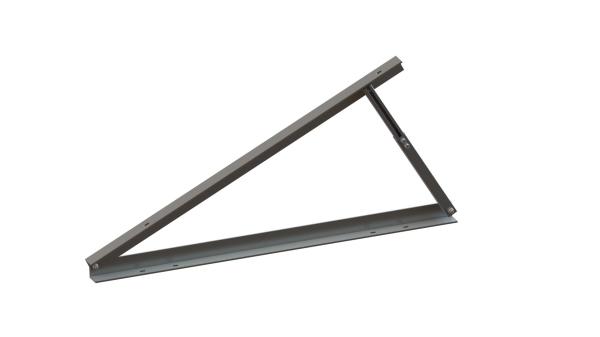

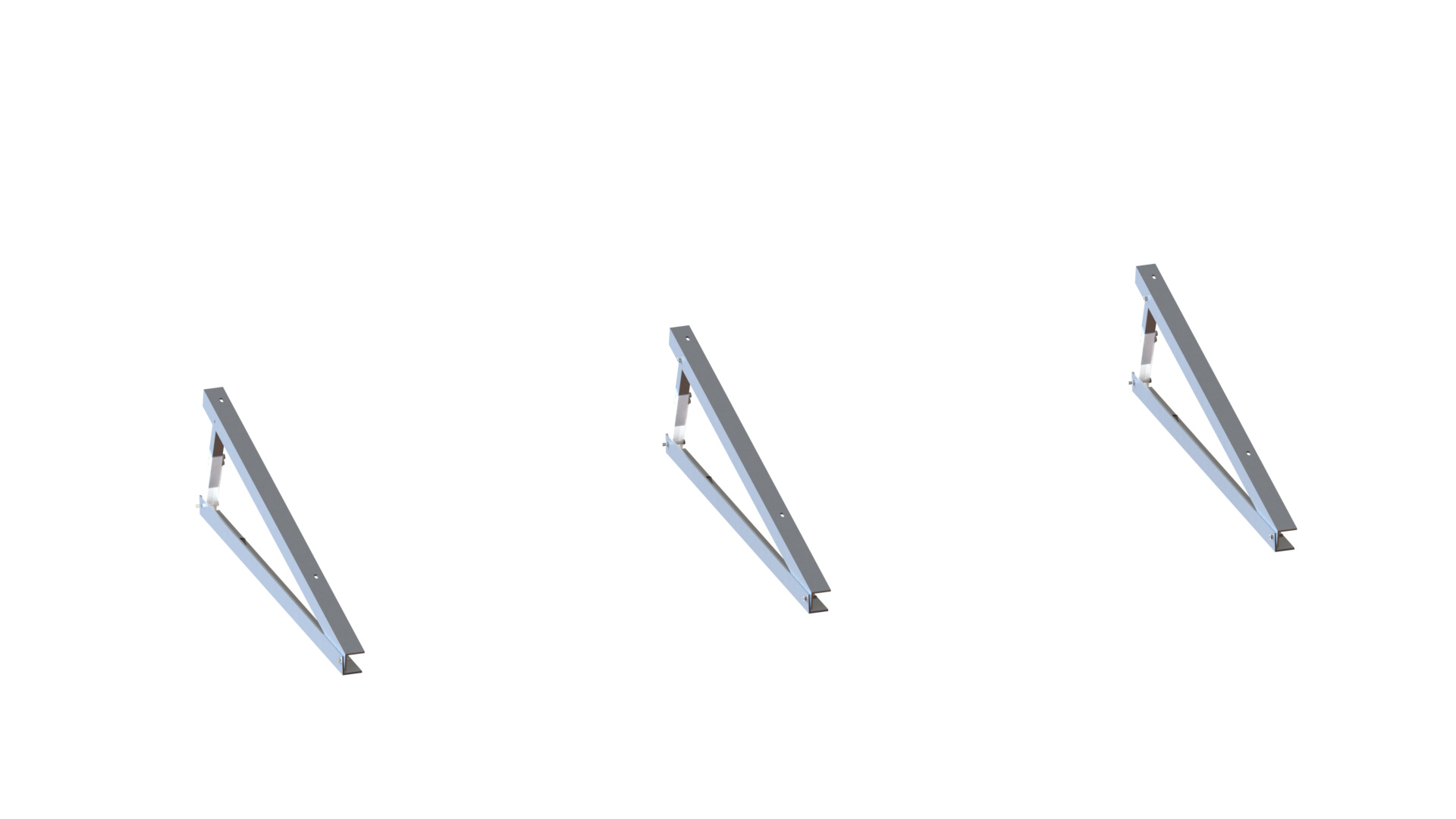

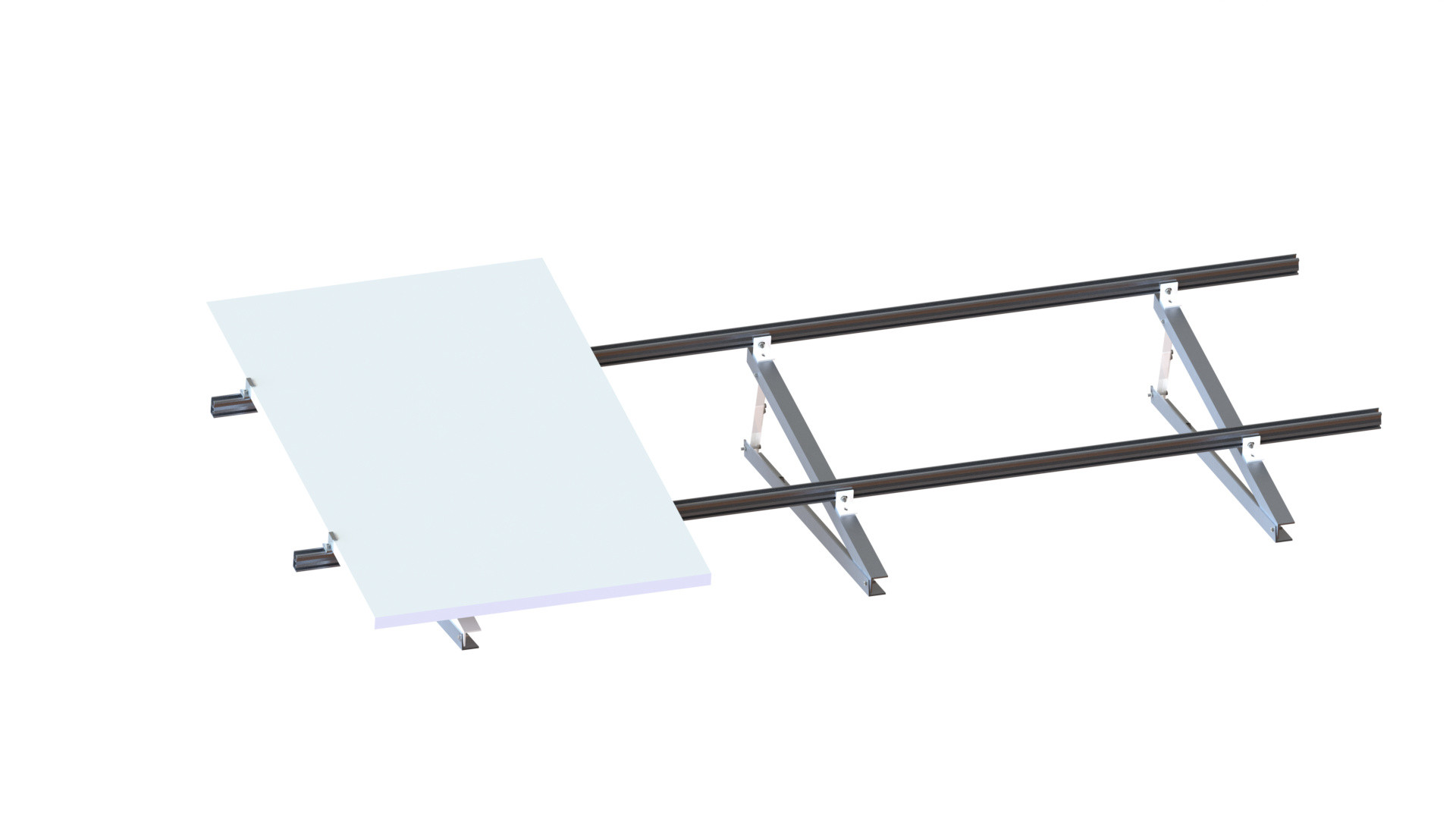

Adjustable triangle mounting system is an upgraded version of fixed triangle mounting system, which makes the rear support into a tilt leg form to achieve the purpose of adjustable Angle. Moreover, the structure can complete a high degree of pre-installation before leaving the factory, greatly saving the time and labor cost of on-site construction.

Adjustable triangle mounting system same like the adjustable tilt legs, can have three adjustable angles ranges, one is 10~15°, another is 15~30°, and also 30~60°. Sometimes, customers will ask us, can you directly do 0~60 degrees adjustable triangle mounting system? Unfortunately, the answer is no, because the rear support is required between the shortest and longest sizes, which will result in a certain range of angles. But if you need another angle range, please don’t hesitate to let us know, LP SOLAR engineer team will check whether can do it, we had customized 10~22° angle range before according to customer requirement.

About the fixing method of the roof, you can use tapping screw or used in combination with roof clamp. Also you can choose rail type depending on your preferred fix way. The design of the structure is to select components from the ready-made product library and assemble them into a complete mounting system. Of course, no matter what type of structure, when providing solutions, LP SOLAR engineer team will check the strength of the structure to ensure its safety.

Technical Data

Partial enlarged details

About LP Solar
• Lipu Metal (Jiangyin) Co., Ltd was previously called Leapton Metal (Suzhou) Co., Ltd before;
• November 30th, 2018, Lipu Metal (Jiangyin) established, the factory was relocated from Suzhou to Jiangyin;
• The new factory covers an area of about 21,300 square meters;
• The annual capacity of 500MW for mounting system and 500MW for aluminum frames;
• Lipu Metal has obtained 17 product patents so far.

About Factory

Raw material area	Material area	Cutting area	Producting area	Sampling area
Pre-install area	Wahouse 1	Packing area	Finish W.H. 2	Loading area

Welcome to LP SOLAR!

Lipu Metal (Jiangyin) Co., Ltd was pervious called “Leapton Metal (Suzhou) Co., LTD”. And moved from Suzhou to Jiangyin in 2018. It is specialized in R&D, production and sales of solar mounting system and panel frame. So far, our products has been shipped to Japan, Vietnam, Singapore, Philippines, South America, Africa and so on.

The annual production capacity of panel frame is 2GW, and the annual production capacity of solar mounting system is 500MW.

To market demand-oriented, LP SOLAR will provide you with exclusive solar photovoltaic system solutions!

MISSION

To provide our customers PV modules and mounting systems with competitive prices, plus outstanding technical support and customer service.

STRATEGY

Market oriented by offering Customized products and services and committed to delivering clean energy solutions to maintain a unique position in the market.

VISION

LP Solar strives to maintain a state-of-the-art technology based on green energy by marketing the international-standard products that are backed by a 25-year warranty and outstanding technical support.
