2 Inch Bench Mount Hydraulic Hose Crimping Machine Eaton Switch Hydraulic Crimper Hose Press

Categories Hydraulic Hose Crimping Machine
Power: 3.75KW
Size: 720*970*1600mm
Brand Name: MENSION
Model Number: MS-P130
Certification: CE RoHS
Place of Origin: CN
MOQ: 1 Set
Payment Terms: L/C,D/A,D/P,T/T,,
Supply Ability: 1000 Sets Per Month
Delivery Time: 2 - 7 Working Days
Packaging Details: One Plywood For One Set
Crimping Force: 600T
Color: Grey and Orange
Weight: 820Kg
Price: Contact Us
Die Sets: 10
System Pressure: 31.5Mpa
Hose Size: 1/4-2inch
Crimping Range: 14-87mm
Max. Opening: 45mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

2 Inch Bench Mount Hydraulic Hose Crimping Machine Eaton Switch Hydraulic Crimper Hose Press

MS-P130 Hydraulic Hose Crimping Machine
The MS-P130 pressing machine is engineered to meet market demand for thin head crimping applications. It provides an ideal solution for elbow fitting crimping with its wide opening design.
Key Advantages
  • Large opening head for easy crimping of elbow fittings
  • Quick die change system for enhanced productivity
  • High-precision micrometer for superior crimping results
Technical Specifications
ModelMS-P130 Crimping Machine
Crimping Range14 - 87 (mm)
Crimping Force600 (T)
Hose Size1/4 - 2 (inch)
Max. Opening45 (mm)
Die Sets10
Die Set TypeP130
System Pressure31.5 (Mpa)
Accuracy0.01 (mm)
ControlMS
Standard Voltage220 (V) / 380 (V)
Motor Power3.75 (KW)
Length720 (mm)
Width970 (mm)
Height1600 (mm)
Weight820 (KG)
MS-P130 Hydraulic Hose Crimping Machine overview
P130 Hose Crimper Die Sets
Die No.Crimping RangeLength
6*6 - 8mm35
8*8 - 10mm35
10*10 - 12mm35
12*12 - 14mm35
1414 - 16mm60
1616 - 19mm60
1919 - 22mm60
2222 - 26mm60
2626 - 30mm60
3030 - 34mm70
3434 - 39mm70
3939 - 45mm70
4545 - 51mm80
5151 - 57mm80
5757 - 63mm80
6363 - 69mm100
6969 - 74mm110
7474 - 80mm110
78*78 - 87mm110
Note:
• "*" indicates non-standard die sets
• Customized die sets are available
• Special voltages (110V, 208V, 240V, 415V) are available

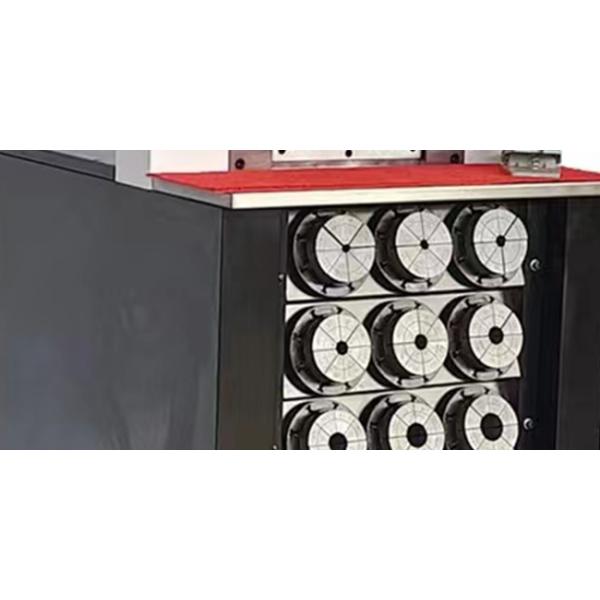

Fast Change Die Sets
14 die sets covering range from 14mm to 74mm, suitable for hose from 1/4 to 2 inch with six spirals crimping.
Fast change die sets for hydraulic hose crimping
Double Use Foot Pedal
The large foot pedal design frees both of the operator's hands, significantly improving working efficiency.
Double use foot pedal for hydraulic crimper
OEM Services Available
OEM services for hydraulic crimping machines
Application Examples
Hydraulic hose crimping machine in application
