1 4 Hydraulic Hose Crimper High Accuracy Hose Crimping Tool Pipe Clamping Machine

Categories Dx68 Hose Crimping Machine
Brand Name: MENSION
Model Number: MS-E150
Certification: CE RoHS
Place of Origin: CN
MOQ: 1 Set
Payment Terms: L/C,D/A,D/P,T/T,,
Supply Ability: 1000 Sets Per Month
Delivery Time: 2 - 7 Working Days
Packaging Details: One Plywood For One Set
Size: 650*550*650mm
Die Sets: 15
Crimping Range: 14 - 127mm
Product Name: E150 Hose Crimping Machine (DX68)
Max. Opening: 35mm
Color: Blue
Price: Contact Us
Crimping Force: 780T
Application: Workshop
System Pressure: 31.5Mpa
Power: 3KW
Hose Size: 1/4 - 3inch
Weight: 250Kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

1 4 Hydraulic Hose Crimper High Accuracy Hose Crimping Tool Pipe Clamping Machine

1/4" to 3" Hydraulic Hose Crimper - High Accuracy Hose Crimping Tool
MS-E150 Powerful Hose Crimping Machine

The MS-E150 is a fine power hose crimper machine with a compact structure, designed as the ideal choice for large hose assembly production. Through years of research and development, the cylinder and die sets feature enhanced convenience and human-centered design.
Main Features
  • Large crimping capacity from 1/4 inch to 3 inch
  • High precision crimping accuracy
  • High operational efficiency
  • Exceptional performance stability
Technical Specifications
ModelMS-E150 Hose Crimping Machine (DX68)
Crimping Range14 - 127 mm
Crimping Force780 Tons
Hose Size1/4 - 3 inch
Max. Opening35 mm
Die Sets15
Die Set Type150
System Pressure31.5 MPa
Accuracy0.01 mm
ControlMS
Standard Voltage220V / 380V
Motor Power3 KW
Length650 mm
Width550 mm
Height650 mm
Weight250 KG
MS-E150 Hydraulic Hose Crimping Machine
150 Crimper Die Sets
Die No.Crimping RangeLength
6*6 - 8 mm55
8*8 - 10 mm55
10*10 - 12 mm55
12*12 - 14 mm55
1414 - 16 mm55
1616 - 19 mm55
1919 - 22 mm55
2222 - 26 mm70
2626 - 30 mm70
3030 - 34 mm70
3434 - 39 mm75
3939 - 45 mm75
4545 - 51 mm90
5151 - 57 mm90
5757 - 63 mm100
6363 - 69 mm110
6969 - 74 mm110
7474 - 78 mm110
7878 - 87 mm110
Additional Options & Notes
  • Customized die sets available with different sizes or shapes
  • Special voltages including 110V, 208V, 240V, and 415V available
  • Foot pedal option for hands-free operation
  • * Denotes non-standard die sets

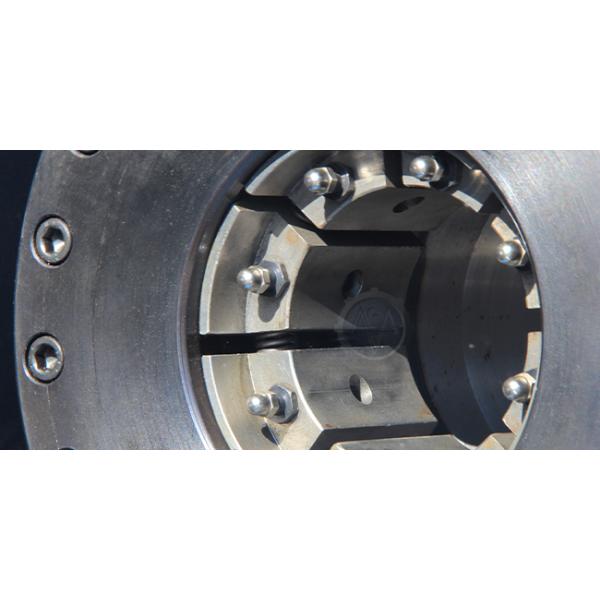

MS-E150 Hose Crimper close-up view MS-E150 Hose Crimper side view MS-E150 Hose Crimper operational view
