| Categories | Stainless Steel Profile |
|---|---|
| Brand Name: | PU CHENG |
| Model Number: | 201 304 316 |
| Certification: | ISO9001 14001 BV TUV PED DNV etc |
| Place of Origin: | Jiangsu,China |
| MOQ: | 1 MT |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 8000MT/Month |
| Delivery Time: | 5-8 work days |
| Packaging Details: | Exporting package/wooden box package/Or per customers’ requirement |
| Product Name: | Stainless Steel I-Beam |
| Application: | Steel building |
| Length: | 6m,9m,12m, 6-12m |
| Standard: | ASTM, ASTM SUS AISI SS |
| Flange Thickness: | 8mm - 64mm |
| Web Thickness: | 5mm - 36.5mm |
| Flange Width: | 50-400mm |
| Web Width: | 100mm~900mm |
| Company Info. |
| Jiangsu Pucheng Metal Products Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

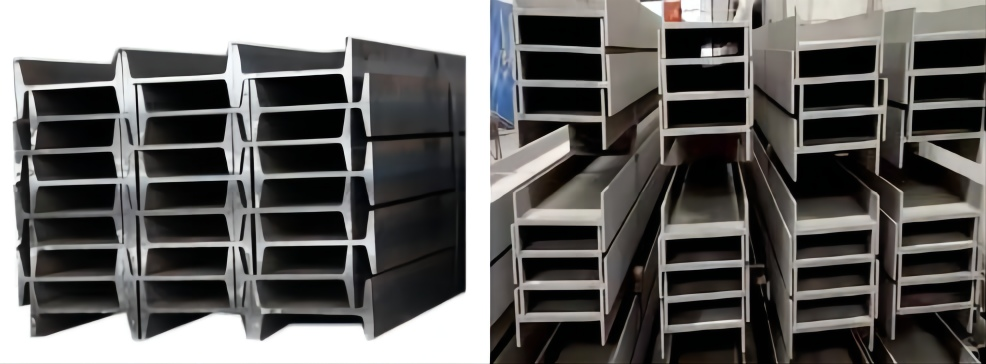

China Manufacturer Stainless Steel I-Beam/304 Steel I Beam Price/316 Steel I-Beams
Descriptions
Standard | ASTM A479,ASTM A276,ASTM A484, ASTM A582, ASME SA276, ASME SA484, GB/T1220, GB4226, etc. | ||
Material | 301, 304, 304L, 309S, 321, 316, 316L, 317, 317L, 310S, 201,202 321, 329, 347, 347H 201, 202, 410, 420, 430, S20100, S20200, S30100, S30400, S30403, S30908, S31008, S31600, S31635, etc. | ||
Specifications | Round bar | Diameter:0.1~500mm | |
Angle bar | Size: 0.5mm*4mm*4mm~20mm*400mm*400mm | ||
Flat bar | Thickness | 0.3~200mm | |
Width | 1~2500mm | ||
Square bar | Size: 1mm*1mm~800mm*800mm | ||
H Beam | Thickness | 7-35mm | |
Surface | Black, peeled, polishing, bright, sand blast, hair line, etc. | ||
Price Term | Ex-work, FOB, CFR, CIF, etc. | ||
Export to | Singapore, Canada, Indonesia, Korea, USA, UK, Thailand, Peru, Saudi
Arabia, Viet Nam, India, Ukraine, Brazil, South Africa, etc. | ||
Package | Export standard package, bundled or be required. The inner size of container is below: 20ft GP: 5.9m(length) x 2.13m(width) x 2.18m(high)about 24-26CBM 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM | ||
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | ≤ 0.03 | 3.5-5.5 | 16.0-18.0 | - |
| 301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-13.0 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤0.75 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | - |
| 314 | ≤0.25 | ≤1.5-3.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 19.0-22.0 | 23.0-26.0 | |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-15.0 | 16.0-18.0 | 2.0-3.0 |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.013 | 17.0-19.0 | - |
| 347 | ≤0.08 | ≤0.75 | ≤2.0 | ≤0.045 | ≤ 0.03 | 9.0-13.0 | 17.0-19.0 | |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
| 420 | ≤0.16-0.25 | ≤1.0 | ≤1.0 | ≤0.040 | ≤ 0.03 | - | 12.0-14.0 | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤ 0.03 | ≤0.60 | 16.0-18.0 | - |
| 904L | ≤0.02 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 23.0-28.0 | 19.0-23.0 | - |

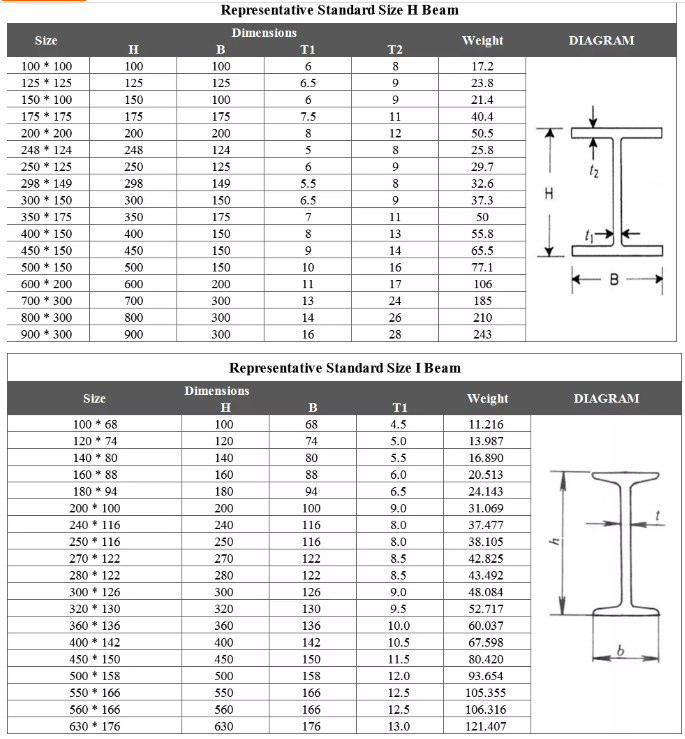

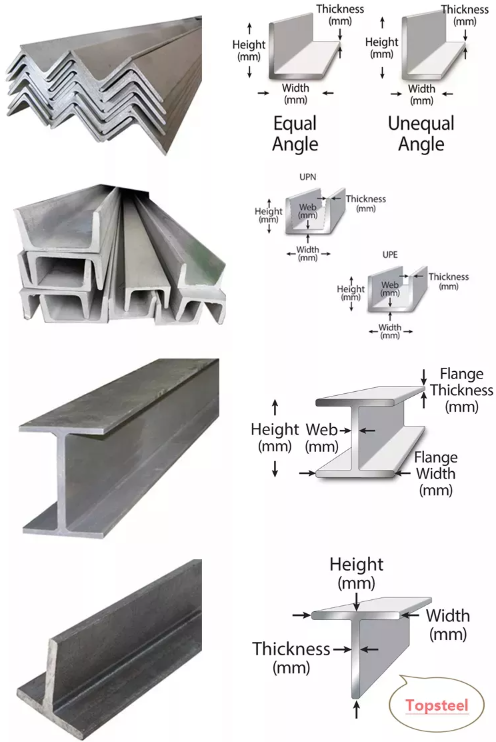

Details

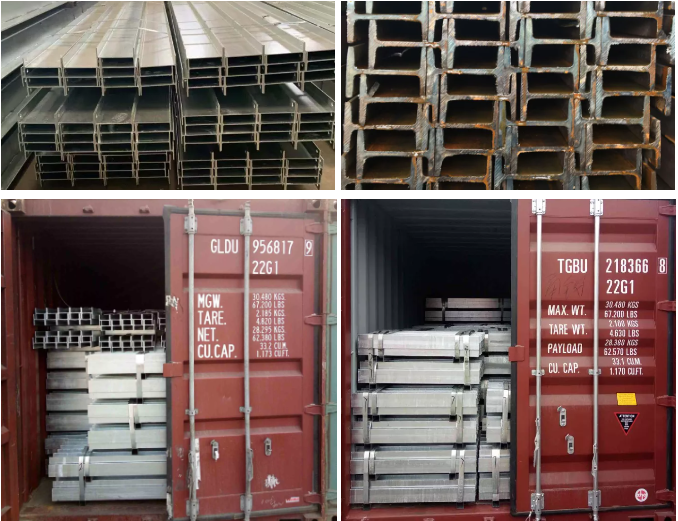

Packing & Shipping
Packing:
(1):Standard seaworthy export packing, wooden pallets with plastics
protection .
(2) Max 20-25MT can be loaded into 20'container and 40'container.
(3)The other packing can be made based on the customer requirement.
Delivery time:
If we have stocks for your demanded size, we can deliver within 3
days.
For customised sizes and in quantity over100 kg (Some materials are
allowed MOQ 50 kg),we can guarantee delivery within 3 weeks or 25
days.

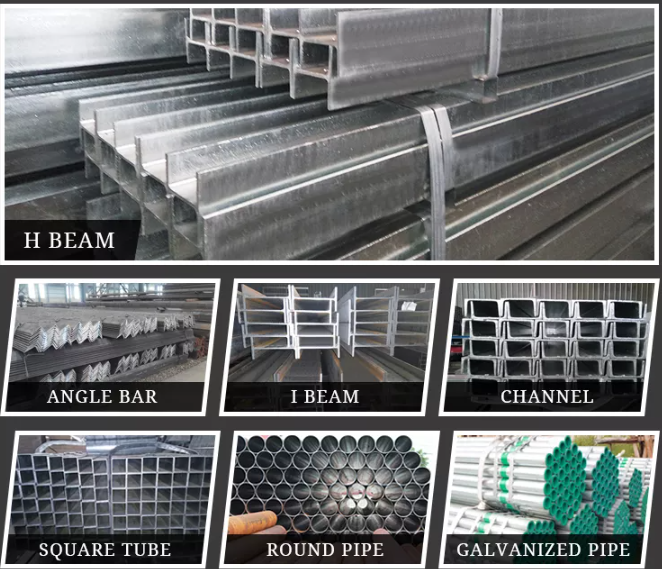

Recommend Products

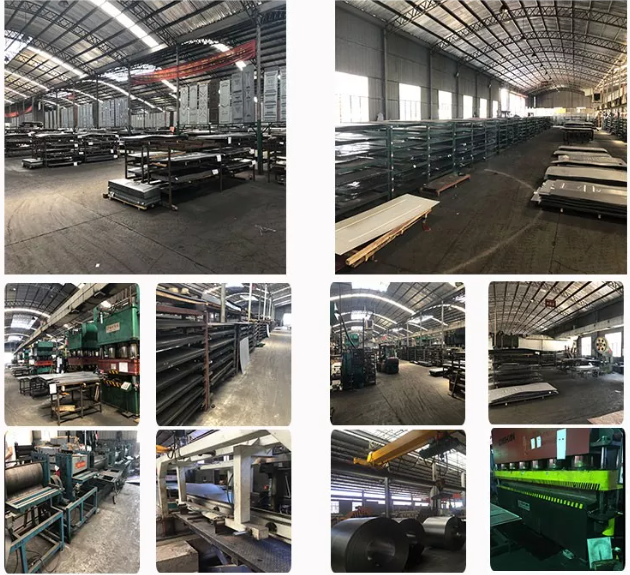

Our Factory
Certificates
Market
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay
the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30%
T/T in advance ,balance before shippment.
Q: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is
15-20 days if the goods are not in stock, it is according to
quantity.
|
