| Categories | Fuel Delivery Truck |
|---|---|
| Brand Name: | CLW |
| Model Number: | CLW20220613 |
| Certification: | ISO9001, CCC, BV, SGS |
| Place of Origin: | SUIZHOU, HUBEI, CHINA |
| MOQ: | 1 unit |
| Price: | Negotiated |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 units per month |
| Delivery Time: | 30-35 days after receiving the deposit |
| Packaging Details: | Naked or waxed before shipment |
| Tanker material: | Stainless Steel, Aluminum Alloy |
| Drive Type: | 4x4 AWD, Off Road for bad road condition |
| Drive model: | Left hand drive, or Right hand drive, RHD |
| Tank Volume: | 12000L, 15000L, 12CBM, 15CBM, 12M3， 15M3 |
| Truck Brand: | Dongfeng /Sinotruk HOWO, shacman, FAW, FOTON, jac |
| Tuck type: | Aviation kerosene, Jet A1 Transport, delivery and refilling |
| Other equipment: | charging/discharging valves. API Manhole |
| Compartment: | 1 |
| Dispenser: | With dispensers ( 2 fuel filling machine) |
| Product name: | Helicopter Aircraft Aviation Rufueling/Refilling Filling Tank Truck |
| Type: | For Army, Military using |
| Transmission type: | Manual |
| Company Info. |
| HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
Product Description
Competitive advantage fuel tanker truck series
1. Purpose: It used for helicopter refueling and mobile
transporting aviation kerosene.
2. Main parts: Fuel pump, flow meter and filling gun etc.
3. Advantage: Top quality Jets Refueling Truck with competitive price.
Product Specification
| Condition | New condition/Left hand drive | ||
| Drive Type | 4x4, Full Wheel Drive, All Wheel Drive, AWD. Off Road Type For Army, Military Using | ||
| Chassis | Brand | SINOTRUK | |
| Model | HOWO | ||
| Curb weight(kg)(Whole Truck) | 9000 kg | ||
| Loading weight(kg) | 12000 kg | ||
| Wheelbase(mm) | 4600 mm | ||
| Front/Rear axle loading weight(kg) | 7000/16000 kg | ||
| Dimensions(mm)(Whole Truck) | 9175*2480*3290 mm | ||
| Front/Rear overhang(mm) | 1500/2675 mm | ||
| Approach/Departure angle(°) | 20/14° | ||
| Max. driving speed(km/h) | 80 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brakes | Service brake: dual circuit compressed air brake. Parking brake:(emergency brake): spring energy, compressed air operating on rear wheel. Auxiliary brake: engine exhaust valve brake | ||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 10pcs with one spare tire | |
| Specifications | 12.00R20/12R22.5 | ||
| Fuel tank volume(L) | 400 L | ||
| Transmission | Manual type, HW19710, 10 Forwards and 2 reverses | ||
| Steering | Power steering, hydraulic steering with power assistance | ||
| Cabin | It can accommodate three people, With Air conditioner | ||
| Engine | Brand | SINOTRUK | |
| Model | WD615.62 | ||
| Fuel type | Diesel | ||
| Displacement(ml) | 9726 ml | ||
| Power(kw) | 196 kw | ||
| Horsepower(HP) | 266 HP | ||
| Cylinder number | 6 pcs | ||
| Rated speed(rpm) | 2500 rpm | ||
| Emission standard | Euro 2 | ||
| Upper & Equipment | |||
| Fuel tank | Capacity(cbm) | 15cbm, 15000Liters, 15M3, 15 Cubic Meters | |
| Tank material | Aluminium alloy | ||
| Compartment quantity(pcs) | 1 pcs | ||
| Filling medium | Aviation kerosene, Jet A1 | ||
| Piping system | Stainless steel | ||
| Manhole | Quantity(pcs) | 2 pcs | |
| Size(mm) | 500 mm | ||
| Filter | International brand filter | ||
| Remarks | Pls directly contact with us for more technical parameters | ||

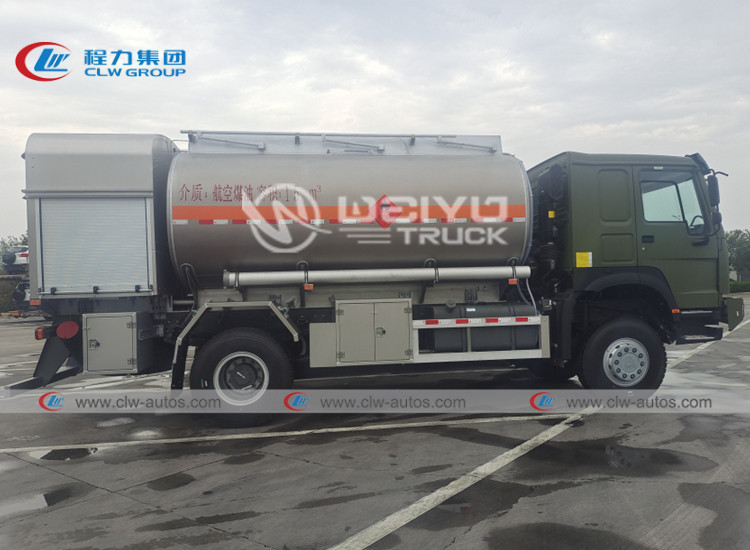

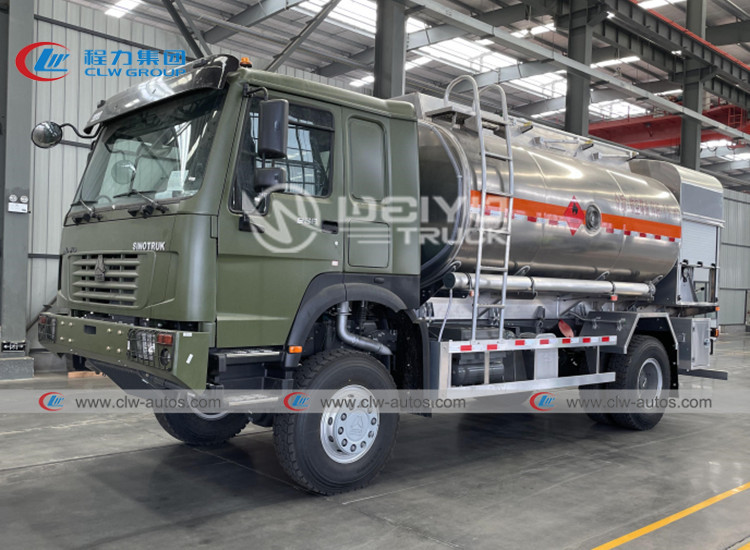

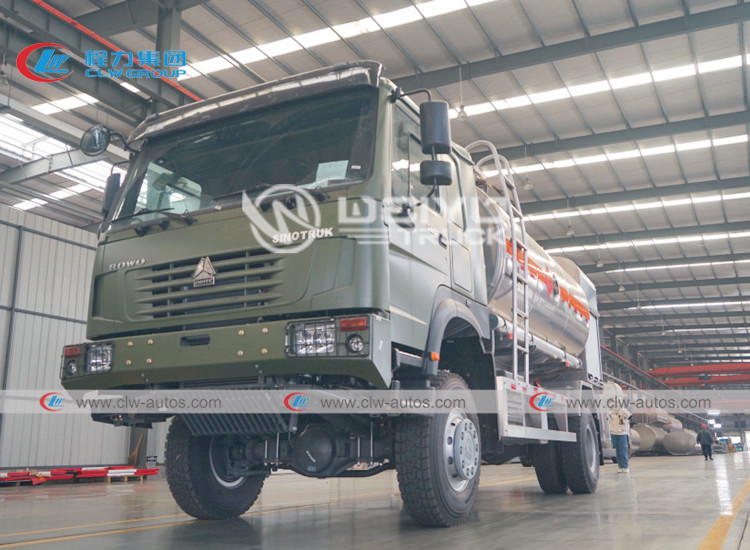

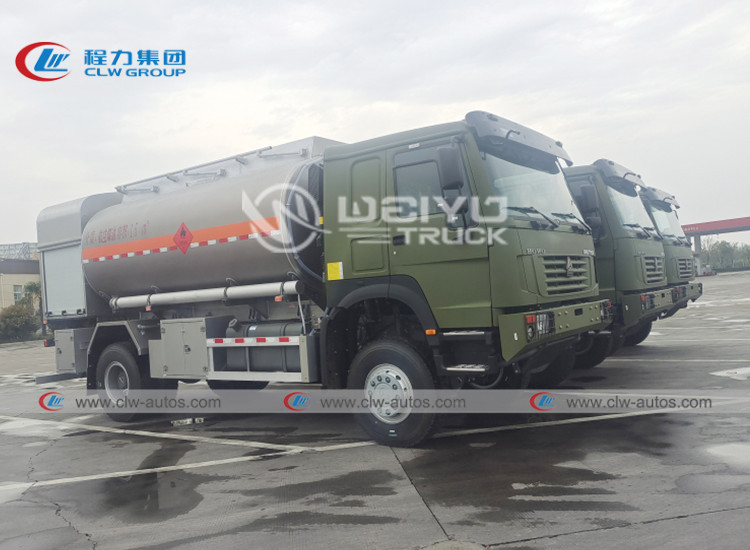

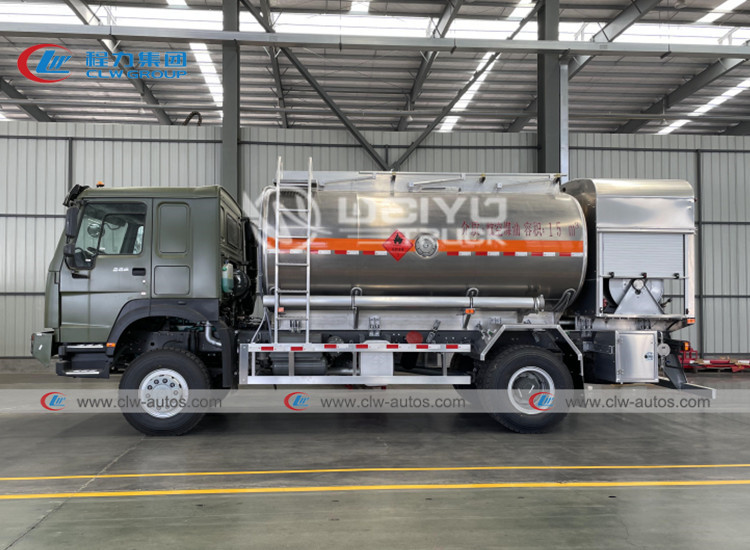

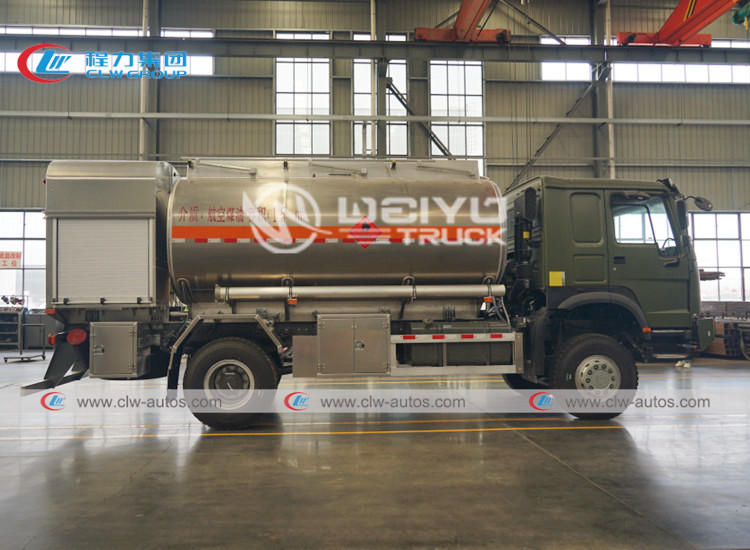

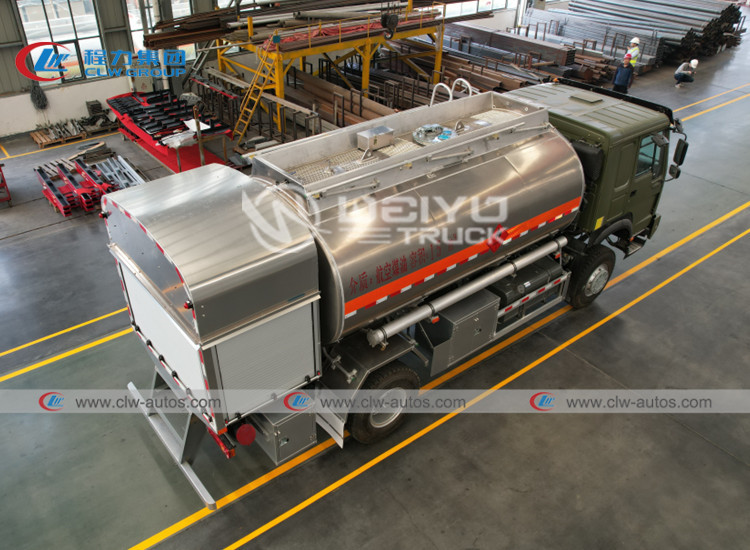

More pictures for HOWO 4X4 Off Road AWD 15000liters Helicopter Aircraft Aviation Refueling Tank Truck for
Jet A1/Aviation kerosene filling.
Warranty
1. One year free warranty for major 3 components of our trucks:
engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's
country to assist the installation
and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation
insurance for customer to ensure the products
arriving at destination safely.
|
