IP65 Electronic Digital Pressure Switch WNK 4 - 20mA

IP65 Electronic Digital Pressure Switch WNK 4 - 20mA

IP65 Electronic Digital Pressure Switch WNK 4 - 20mA
IP65 Electronic Digital Pressure Switch WNK 4 - 20mA
Categories Electronic Level Switches
Brand Name: WNK
Model Number: WNK-SLS
Place of Origin: Anhui, China
MOQ: 1pcs
Price: $105.00 - $120.00/Pieces
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 2000 Piece/Pieces per Week Water Level Switch Sensor
Delivery Time: 5-8 work days
Packaging Details: each product in one inner paper box with foam protection
Grade: Industrial
Warranty: 1 year
Customized support: OEM, ODM
Measured media: liquid, Oil
Measurement range: 0-200 M
Output signals: 4-20mA, 0-5V, 0-10V, RS485
Accuracy: 0.5%F.S
Switching type: NO/NC
Display: OLED
Protection class: IP65
Housing material: 304SST
Power supply: 12-30V DC
MOQ: 1 PC
Port: Shanghai port
Contact Now
Company Info.
Hefei WNK Smart Technology Co.,Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

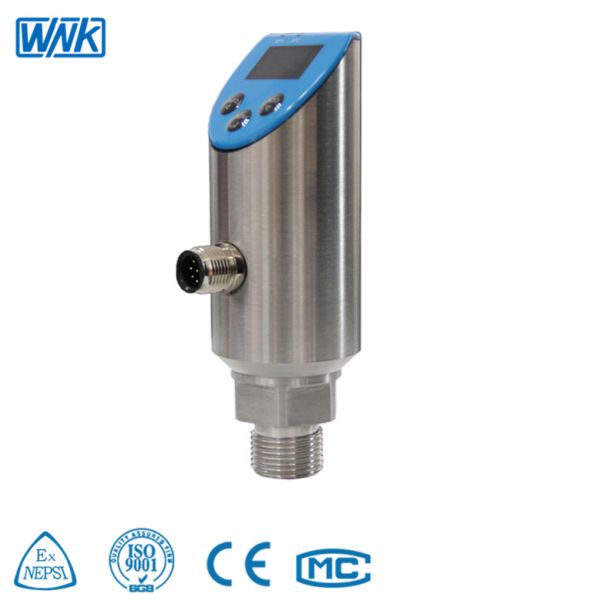

IP65 Electronic Digital Pressure Switch WNK 4 - 20mA

WNK 4-20mA Electronic Digital Pressure Switch

Digital Electronic Pressure Switch

Product Description

1. Gas and liquid pressure measurement
2. Support MODBUS
3. Switching points settable
4. Switching can be set normally open / normally closed
5. Supporting Switching delay
6. Various analog output ways available
7. Displaying pressure peak value and environment temperature
8. Analog output span settable
9. OLED self-luminous display
10. Display turnable 180°
11. Housing with electrical connection against process connection rotatable 330°
12. PNP switching, voltage and current outputs
Smart Electronic Pressure Switch with LED Display
Model No.
SPS
Measuring range
0.1...0.1MPa to 60MPa
Measuring media
Gas & Fluid
Accuracy
≤0.5%FS
Supply power
12...30VDC
Temperature error within rated temp range
±0.02%FS/℃ (Zero/full span)
Long-term stability
±0.3%FS/year
Analog output accuracy
±0.2%FS
Output configurations
switching+voltage+ communication: 2×PNP + 0V~5VDC/10VDC + MODBUS
switching+current+ communication: 2×PNP + 0mA/4mA~20Madc + MODBUS
Switching current
1.0A(Max.)
Switching type
normally open , normally closed
Switching respond time
<10ms
Switching delay
0.00s~1000.0s
Switching motion mode
delay or windows mode
Analog signal output and maximum ohmic load RL
Current output: 0/4…20mA,20…4/0mA RL≤0.5kΩ
Voltage output: 0…5/10V,5/10…0V RL>10kΩ
Screen display
OLED
Switching indicator
2X red LED
Displaying pressure units
psi,bar,mbar,Pa,kPa,MPa
Working temperature
-30℃~80℃
Media temperature
-30℃~80℃
Storage temperature
-40℃~80℃
Electromagnetism compatible
GB/T 17626.2/3/4-2006
Shock resistance
≤10g/10Hz...500Hz(IEC 60068-2-6-2007)
Vibration resistance
≤50g/11ms(IEC 60068-2-27-2008)
IP rating
IP65
Product Dimension


Hot Product

Company Information


Exhibition



Certification


FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
