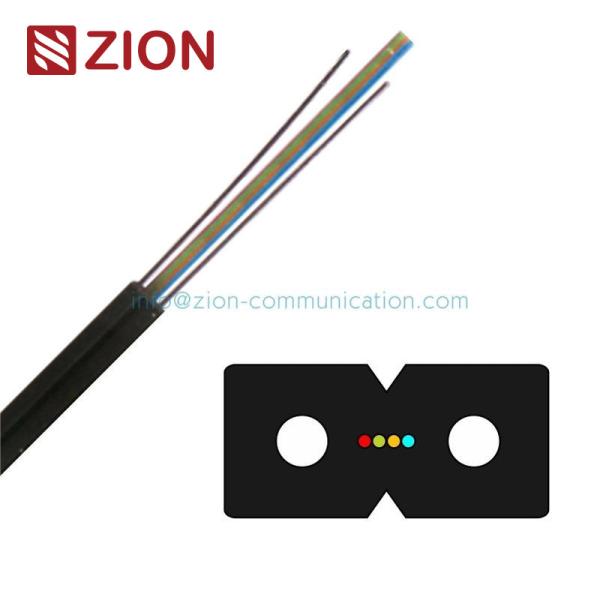

GJXFDH / GJXDH Indoor FTTH Drop Cable Ribbon Fibers 2.0x4.0 LSZH

GJXFDH / GJXDH Factory Direct Price Indoor FTTH Drop Cable Ribbon Fibers 2.0*4.0 LSZH

GJXFDH FTTH Drop Fiber Optic Cables Ribbon Fibers 2.0*4.0LSZH

GJYXFDCH(GJYXDCH) FTTH Drop Fiber Optic Cables Ribbon Fibers

Introduction

The typical GJYXFDCH / GJYXDCH Self-supporting drop optical cable includes central optical Ribbon fibre(s) with 2 parallel FRP/Steel wires as the strength members placed on both sides,and an additional strength member(steelwire),Finally a LSZH sheath is extruded outside.

Features

Simple structure, light weight, high tensile strength and metal-free
Novel groove design, easily strip and splice, simplified installation and maintenance
Low smoke, zero halogen and flame retardant sheath, environment-friendly, good safety

Product Series

• GJXFH: FRP Strength Member+2.0*3.0LSZH
• GJXH: Steel Wire Strength Member+2.0*3.0 LSZH
• GJXH-Small Diamter: Steel Wire Strength Member+1.6*2.0 LSZH
• GJX(F)DH: Ribbon Fibers+2.0*4.0LSZH
• GJYX(F)CH: Self-Supporting Wires+2.0*5.2LSZH
• GJYX(F)CH-Small: Self-Supporting Wires+1.7*3.8LSZH
• GJYXFDCH(GJYXDCH): Self-Supporting Wires+Ribbon Fibers+1.7*3.8LSZH
• GYFJU: Aramid Yarn Strength Round Sheath LSZH
• GYGXY: Central Tube Glass Yarns armor Round Sheath HDPE
• FDC: Flat Drop Cable+Central Tube+3.0*6.0 LSZH
• ASU: Self-Supporting FRP Strength+Tube+7.0/8.0 HDPE
• GYXY-8S: Figure-8 Self-supporting+Aramid Yarns+Tubes+4.6*8.8HDPE
• GYFXBY: Flat Drop Cable+Central Tube+4.6*8.1 LSZH

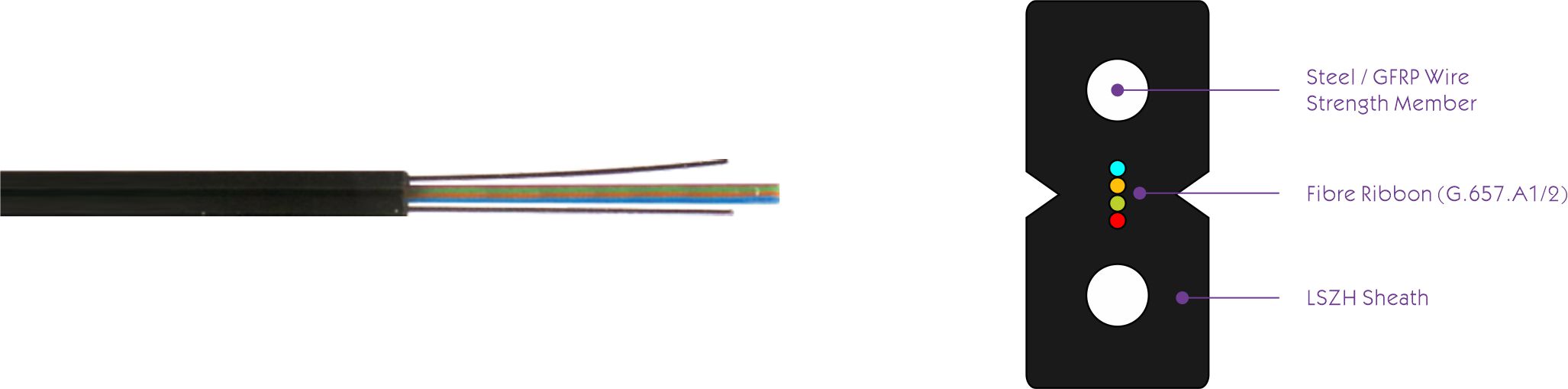

Cross Section

Technical Characteristics

GJXFDH-4 Diametermm: 2.0*6.2

GJXFDH-4 Weight(kg/km): 23.6

GJXFDH-4 Tensile strengthLong/short term(N): 40/80

GJXFDH-4 CrushLong/short term(N/100mm): 500/1000

GJXFDH-4 Bending RadiusStatic/Dynamic: 15/30

GJXDH-4 Diametermm: 2.0*6.2

GJXDH-4 Weight(kg/km): 25.6

GJXDH-4 Tensile strengthLong/short term(N): 100/200

GJXDH-4 CrushLong/short term(N/100mm): 1000/2200

GJXDH-4 Bending RadiusStatic/Dynamic: 15/30

Environmental Characteristics

Transport/storage temperature: -20℃~70℃

Delivery Length

Standard length:1000m;Other length availabe
