Model: PG-072L
Measuring Range: -0.1...0 to 0...60 Mpa or other equivalent units
Accuracy Class: 1.5%
Thread: M20*1.5 G1/2 NPT1/2 etc
Diameter: 100mm
Applications
Hygienic pressure measurement in sanitary applications for the pharmaceutical, biotechnology, food and beverage industries.
Mechanical pressure display, cleaning, sterilization, pressure testing.
For gases, compressed air, vapor; liquid, pasty, powdery and crystallizing media.
Features
Sanitary design.
Universal application.
All stainless steel diaphragm.
Description

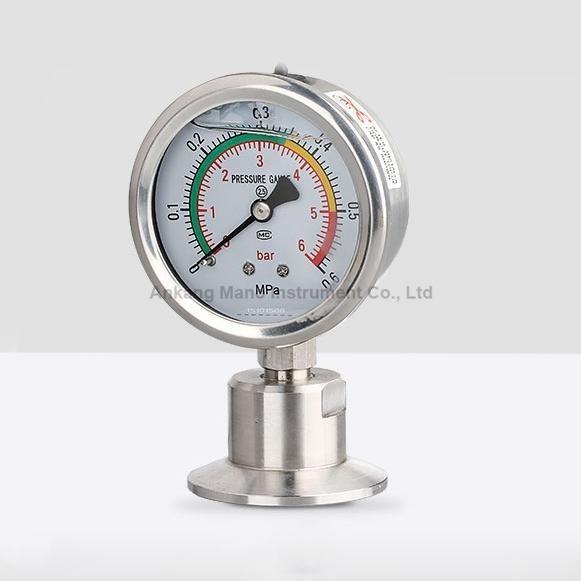

Model PG-072L: Sanitary diaphragm pressure gauge Nominal size in mm (NS in mm) 100mm Accuracy class NS 100: 2.5% Scale ranges From -14.5...0 to 0...8700 psi; (from -1...0 to 0...600 bar or other equivalent units). Pressure Unit Mpa psi bar kg/cm2 Kpa etc. Pointer Aluminum, black. Dial Aluminum, white, black lettering, Single scale; Double scale; Special scale Case Stainless steel 304 (316 or 316L for optional) Movement Stainless steel 304 Ring Bayonet ring, stainless steel 304 (316 or 316L for optional) | Window Laminated safety glass Pressure gauge bourdon tube Stainless steel 316 C-type or helical type (304 or 316L for optional) Diaphragm Stainless steel 316L Diaphragm seal 316L Sealing ring PTFE, Silicone Rubber Protection degree IP54 Process connection Stainless steel with flange connection, Sanitary Diaphragm Thread size M20*1.5 G1/2 NPT1/2 etc. Pressure limitation Steady: Full scale value Fluctuating: 0.9 x full scale value Short time: 1.3 x full scale value System fill fluid Silicone oil |
Options
Accuracy 1.5%
Other material requirements
Customer’s logo dial for OEM or ODM
HOW TO ORDER” SEQUENCE
Model /Nominal size / Scale range / Thread size / Process connection / Options
|
