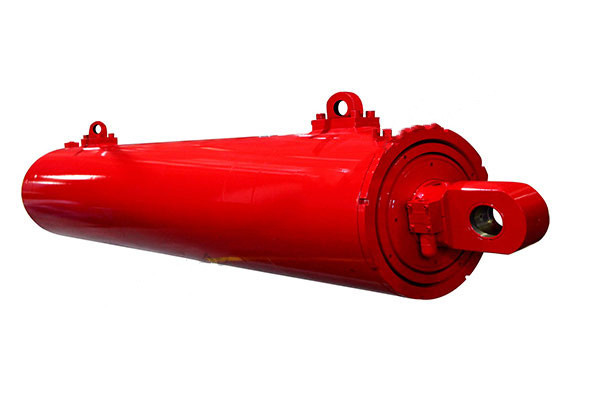

380/320/270/220mm Truck Mounted Drilling Rig Multi Stage Hydraulic Cylinder

Hydraulic Cylinder Multi-stage cylinder

Our product covers many field such as petroleum and gas, railway, coal mine, construction and engineering mechanical etc. and used for outdoor, marine and polar under severe ambient. Especially in the field of petroleum and gas,we have offered a mass of lifting cylinder for drilling rig and workover rig, multistage lifting cylinders for and chassis, damping cylinder, sliding cylinder, hydraulic cathead, iron roughneck, automatic catwalk, pipe slacking block, mechanical arm of drill floor and pipe rack etc.

Technical parameter:

1 Overall dimensions:　　　　　　　　　460x527x3200mm

2 Cylinder diameter:　　　　　　　　　 380/320/270/220mm

3 Rod diameter:　　　　　　　　　　　 360/300/250/140mm

4 Route:　　　　　　　　　　　　　　　2330/2355/2380/2385mm

5 Rated pressure:　　　　　　　　　　 16MPa

Xi’an ATO International Co., Ltd. was founded in 2008, belongs to ATO Group, which is located in Xi'an, China. We are engaged in export of  drilling equipment and spare parts for upstream oil field over ten years.
