Name: tapered drill rod taper rodtapered drill steels
Brand: Jinquan
Price: 50 USD

Home > Lead >

tapered drill rod - taper rod,tapered drill steels

Categories	Tapered Drill Rod
Place of Origin:	China
Brand Name:	Jinquan
Certification:	ISO9001:2008
Model Number:	Threaded & Tapered
Length:	400mm-4800mm
Other Names:	Tapered Drill Rod,Taper Rod,Mining Drill Rod,Drill Rod for Sale,Rock Drill Rods
Material:	95CrMo equivalent to SANDBAR 61
Rod Shape:	Hex
Machine Type:	Drilling Equipment
Processing Type:	Forging
Technology:	Heat Treatment
Application:	Hard Rock Drilling, Mining, Quarrying, Stoning, Construction
Colour:	Black
MOQ:	1 Piece
Price:	$50
Packaging Details:	Ply-wooden cases or Iron bundles
Delivery Time:	Within 15 days upon receipt of your 30% deposit
Payment Terms:	T/T, Western Union, Paypal, L/C At Sight
Supply Ability:	100,000 pcs per month

Contact Now

Add to Cart

Company Info.

Liaocheng Jinquan Construction Machinery Co.,Ltd - China manufacturer of rock drilling tools button bits top hammer rock tools DTH hammer button bits

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

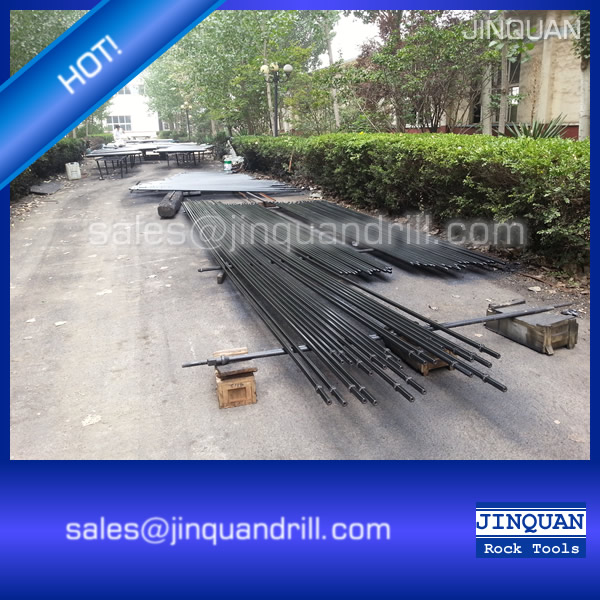

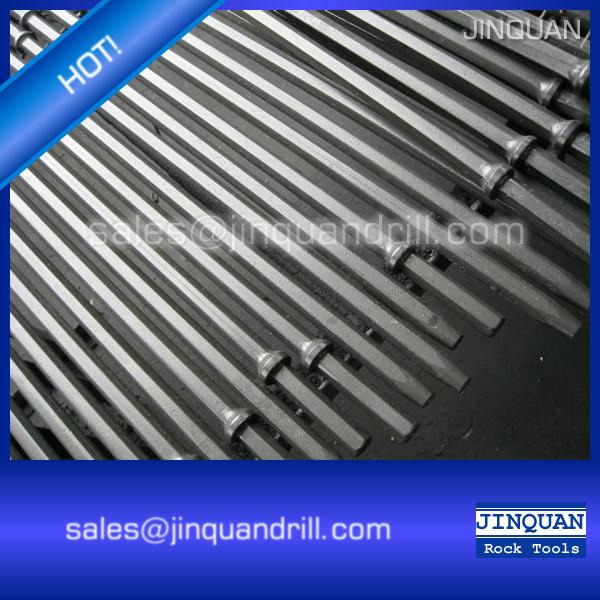

tapered drill rod - taper rod,tapered drill steels

Tapered drill rod, another name called taper rod, tapered drill steels, this provides a hexagonal chuck section to provide leverage for the rotation chuck bushing. It usually has a forged collar to maintain the proper shank striking face position in the rock drill, and a tapered bit end.

Tapered steel lengths:

Available from 0.40m to 8.00 m in length, are measured from the collar to the bit end.

Shank Hexagon:

19 x108 mm, 22x 108mm, 25 x108 mm, 25 mmX159 mm 6, 7, 11, 12 degree taper in most lengths, taper degree of drill steel is mostly imports for excellent drilling productivity.

For drilling medium-hard to hard and abrasive rock formations, taper angles of 6, 7, 11 and 12 degrees are normally used on modern drill rigs, like YT28B, YT29A, Y24, YT24, Mobile rock drill pneumatic and hydraulic.

Specification:

1)Shank Hexagon: 19 x108 mm, 22x 108mm, 25 x108 mm, 25 mmX159 mm

2)Taper Angle: 6, 7, 11, 12 degree

3)Material:high quality alloy steel

Application:

Tapered drill rods are used in granite and marble quarry, gold mine, railway, tunnel, etc.
