Single Facer Corrugating Line, Mill Roll Stand + Single Facer + Rotary Cutter

Categories Single Facer Corrugator Line
Place of Origin: China
Brand Name: Yush
Model Number: DW-60
Certification: CE
Price: FOB: 15000~25000USD
Packaging Details: Plastic Film or Wooden Box
Delivery Time: 30~60 working days
Payment Terms: T/T
Supply Ability: 15 sets per month
MOQ: 1set
Automatic grade: Semi-Automatic
Voltage: 220v/380v/440v
Condition: New
After-sales service provided: Engineers available to service machinery overseas
Driven type: Electric
Name: Corrugated cardboard single facer line
Color: Customized Color
Machine type: Corrugated machine/single facer machine with low price
Usage: corrugated making
Warranty: One Year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

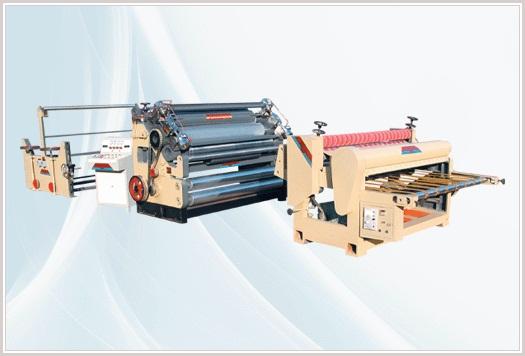

Single Facer Corrugating Line, Mill Roll Stand + Single Facer + Rotary Cutter

DW-60 Single Facer Corrugating Line

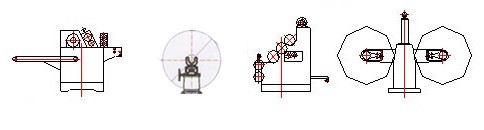

1) DW-60 Single Facer Corrugated Cardboard Production Line consists of three single machines, Shaft type Mill Roll Stand, Finger type Single Facer, Rotary Cutter, etc.

2) Kraft Paper Reel to corrugate and glue by Corn Starch Gum, continuously produce and cut to Single Faced Corrugated Cardboard Sheet, and then through Sheet Pasting Machine to laminate to 3/5-ply corrugated sheet, press and fix.

3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.

4) It is the ideal and perfect equipment for small or medium carton factories.

Max Effective Width

1000~2000mm

Max Paper Roll Diameter

1200mm

Max Paper Roll Weight

2000kg

Corrugating Roller

Φ245mm, 45# steel, heated & grinded, Chrome-plated

Cutting Length

400~2400mm

Cutting Precision

±2.5mm

Design Speed

60m/min

Heating Method

Electrical Heating

Economic Working Speed

20~40m/min
