800W Mixed Working Fluid Heat Exchanger , Custom Heat Exchanger Unit
Quick Details:
| Place of Origin: Shenzhen, China (Mainland) | Rated Heat Exchange Capacity: 80 W/K |
| Brand Name: ESTEL | Rated Heating Capacity:300/500W (optional) |
| Model: HE06-80SEH/T | Input Voltage: DC48V |
| Product Name: Outdoor Enclosure Heat Exchanger | Rated Input Current: 2.53A |
| Certification: ISO9001, CE, 3C, FCC, TLC | Rated Input Power: 121W |
| Cover Material: galvanized steel | Working Temperature: -20°C ~ +55°C |
| Color: gray | Circulation Air Volume: 550m3/h |
| Protection Level: IP55 | Noise: 57dB |
| Installation Mode: top mounted | Dimension H×W×D: 310×482.6×500 mm |
| Support OEM | Cooling Method: heat pipe, passive cooling |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 12,000 sets per month |
| Delivery Time: | 7-10 working days |
| Packaging Details: | carton + foam + wooden case |
1. Technical Parameters
| Model | HE06-80SEH/T |
| Performance Parameters | |
| Rated Voltage (V) | DC48V |
| Rated Current (A) | 2.53 |
| Heat Exchange Capacity (W) | 800 |
| Heater Power (W) | 300 |
| Rated Power (W) | 121 |
| Circulation Air Volume (m3/h) | 550 |
| Noise (dB(A)) | 57 |
| Refrigerant | Mixed Liquid |
| Working Temperature | -20°C ~ 55°C |
| Mechanical Parameters | |
| Installation Mode | Top Installed |
| Height (mm) | 310 |
| Width (mm) | 482.6 |
| Depth (mm) | 500 |
| Controller Parameters | |
| Working Voltage (V) | DC36~72 |
| Working Temperature and Humidity | -20°C ~ +80°C, <90%RH |
| Temperature Control Accuracy (°C) | 0.1 |
| Power Consumption (W) | 5 |
| Communication Mode | Dry contact,RS485, RS232, GPRS |
2. Description
Cabinet heat exchanger is a device that utilizes the natural cool resources to exchange heat between hot inside and cool outside of cabinet with limited power consumption.
When there is large temperature difference, the device will effectively exchange heat between hot inside and cool outside, which make the cabinet be an enclosed system with temperature control, and equipment inside can work normally.
3. Application
The product is widely applied in telecom cabinet, small and medium sized telecom room, UPS room, outdoor base station room, outdoor advertising machine, bank ATM banknote exchange room etc.
(1) Independent energy saving control technology greatly reduces working energy consumption;
(2) LCD control board provides easy installation and maintenance;
(3) Perfect monitoring function, effective monitoring and management on heat exchanger operation;
(4) Integrated design, easy for installation and maintenance;
(5) Protection Level: IP55, Dust proof and water proof;
(6) Anti- corrosion, long service life;
(7) Using DC high efficient fans, greatly lower the product noise, environment friendly;
(8) Good energy saving performance, short investment payback period;
(9) Long service life: more than 10 years, easy maintenance and low cost;
(10) With RS485 remote monitoring interface, fault detection and alarm can be transmitted to monitoring center through controller.
(11) High reliability: 48V DC power supply, works well even when AC power fails.

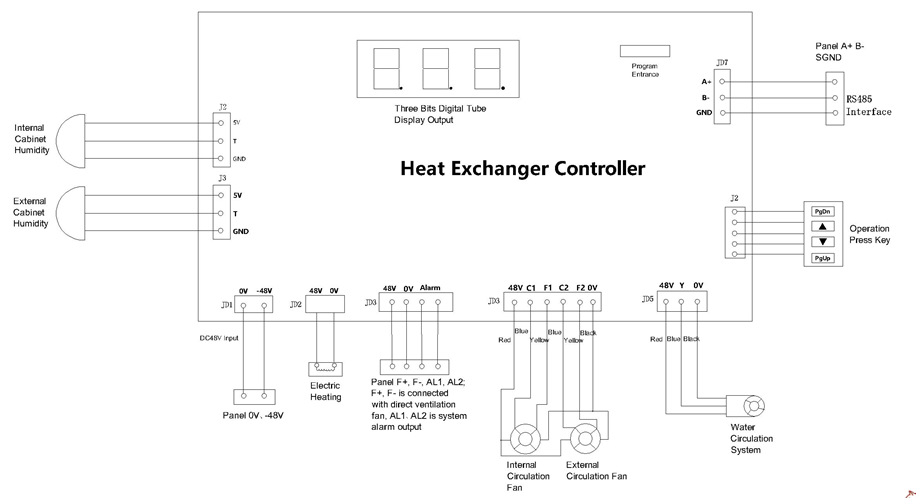

Wiring Ports:
0V -48V: power supply input (voltage input: DC36 - 65V)
A+ B- SGND: RS485 communication interface
AL1 AL2: general alarm output
F+ F- : auxiliary direct ventilation control output (output voltage: DC48V)
7. Packing and Shipping
Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
8. Our Contact Information
Mobile Phone: 0086-13752765943
Telephone: 0086-0755 66600941
Email: info@estel.com.cn
lxf.estel@hotmail.com
Skype: fiona.liang10
|
