| Categories | Self Adhesive Insulation Pins |
|---|---|
| Brand Name: | huihao |
| Model Number: | Insulation anchor Pins |
| Certification: | ISO |
| Place of Origin: | China |
| MOQ: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 6000000pcs per year |
| Delivery Time: | 7 days |
| Packaging Details: | 500pieces per carton, carton size 31x28x29cm, 40 cartons per pallet. or 1000pieces per carton, carton size: 40x40x70cm, 10 cartons per wooden box. |
| plate size: | 40*40mm,50*50mm or as request |
| spindle diameter: | 2mm-3mm |
| spindle length: | 15mm-180mm |
| Type: | Self Adhesive |
| material: | stainless steel, mild steel, aluminum |
| base thickness: | 0.4mm |
| small order: | available |
| sample: | support |
| Company Info. |
| Huihao Hardware Mesh Product Limited |
| Verified Supplier |
| View Contact Details |
| Product List |
Self Adhesive Insulation anchor Pins Materials:Low Carbon Steel - PIN / Plate
Mechanical Properties:Low Carbon Steel - Plate,Also available by
special order in all Stainless Steel or all Aluminum.
Self Adhesive Insulation anchor Pins
1.Plating:Galvanized coating is standard. - PIN / Plate, standard
size is 2". special size 40mmx40mm and 20mmx20mm
2.Washers:Self-locking washers are available in a variety of sizes,
shapes, and materials.
3.Size - D:12 GA (0.105") is standard.Other sizes available by
special order only, for 10ga, 3mm and 14ga.
4.Length - L:1", 1-5/8", 2", 2-1/2", 3-1/2", 4-1/2", 5-1/2".
6-1/2", 8" and 9" are standard.Other lengths available by special
order.
standard Self Adhesive Insulation anchor Pins specification
| pin diameter | base plate size | insulatiion pin length |
| 12ga ( 0.106 " ) | 2 " square w / tape | 1 " |
| 12ga ( 0.106 " ) | 2 " square w / tape | 1 - 5 / 8 " |
| 12ga ( 0.106 " ) | 2 " square w / tape | 2 " |
| 12ga ( 0.106 " ) | 2 " square w / tape | 2 - 1 / 2" |
| 12ga ( 0.106 " ) | 2 " square w / tape | 3 - 1 / 2" |
| 12ga ( 0.106 " ) | 2 " square w / tape | 4 - 1 / 2" |
| 12ga ( 0.106 " ) | 2 " square w / tape | 5 - 1 / 2" |
| 12ga ( 0.106 " ) | 2 " square w / tape | 6 - 1 / 2" |
| 12ga ( 0.106 " ) | 2 " square w / tape | 8 " |
| 12ga (0.106" ) | 2" square w / tape | 9" |
| 12ga (0.106" ) | 2" square w / tape | 10" |
| 12ga (0.106" ) | 2" square w / tape | 11" |
| 12ga( 0.106" ) | 2" square w / tape | 12" |

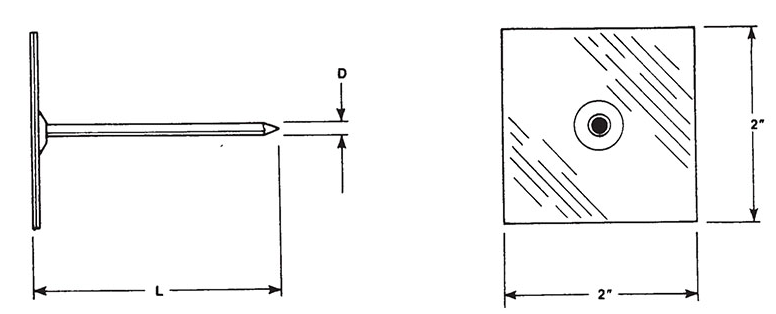

Drawing of self adhesive insulation pins

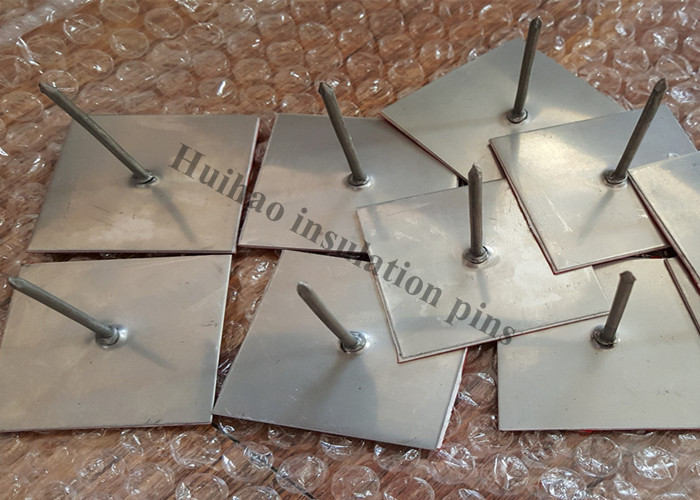

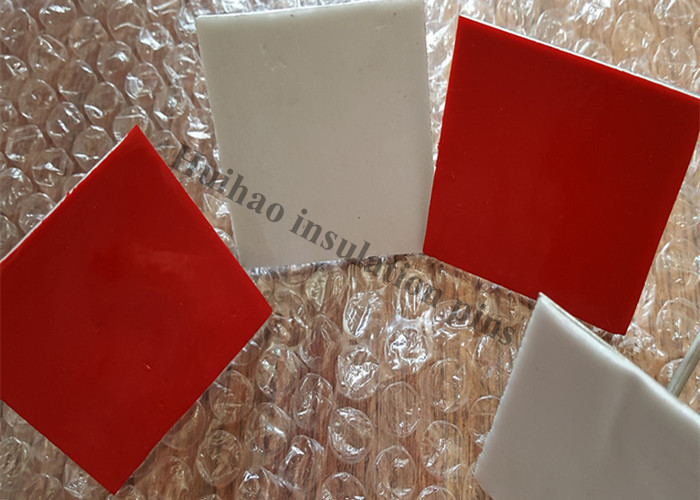

images of self adhesive insulation pins
|
