| Categories | Fiber Optic Splitter |
|---|---|
| Brand Name: | TTI |
| Model Number: | FBT-ABS |
| Certification: | ISO CE UL RoHS |
| Place of Origin: | China |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, ，paypal |
| Supply Ability: | 8000 pieces perday |
| Delivery Time: | 2-5 days |
| Packaging Details: | plastic conta |

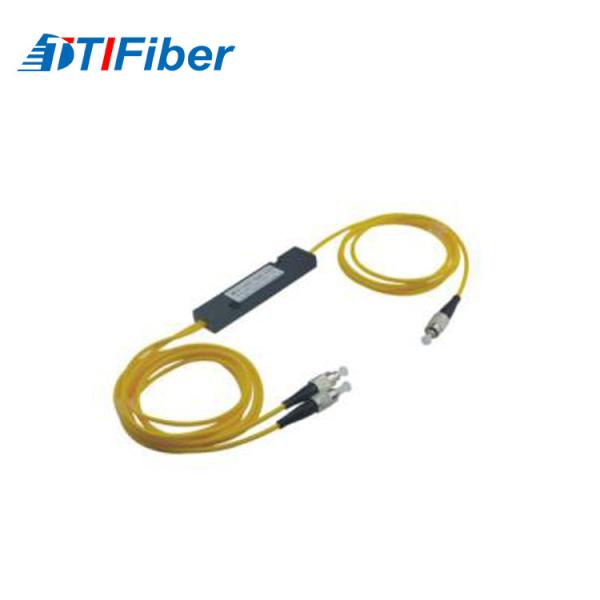

| Product name: | fiber optic splitter |
| Type: | 1X2, 1x4,1x8... |
| connector: | FC ST LC SC |
| cable: | 0.9mm, 2.0mm, 3.0mm |
| cable mode: | G657A1 |
| Company Info. |
| TTI Fiber Communication Tech. Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Place of Origin:shenzhen, China (Mainland)
Brand Name:TTIfiber
Name: FTB / PLC splitter
Application:FTTH System
Connector:LC FC SC Connector
Fiber Type:G657A
Certification:ISO9001:2008
Operating temperature:-40~85℃
Item:FTTH fiber optic plc splitter
Material:ABS box
Connector Type:SC FC LC
Warranty:1 Year
Packaging Details
Standared Cartons, or we accept customized package for Bare optic fiber FBT FTB 1x2 plc splitter
[Gfiber] ftth Bare optic fiber FBT FTB 1x2 plc splitter
Feature:
Application:
| Parameters | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 |
| Operating wavelength(nm) | 1200~1650 | ||||||||
| Insertion Loss (db).Max | 7.2/7.4 | 10.5/10.7 | 13.5/13.7 | 16.5/16.9 | 20.5/21 | 7.5/7.8 | 11.2/11.5 | 14.2/14.5 | 17.4/17.7 |
| Loss Uniformity (db).Max | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 | 1.5 | 1.5 | 2.0 | 2.5 |
| PDL (db).Max | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.2 | 0.4 | 0.4 | 0.4 |
| Return Loss (db) | ≥50 | ||||||||
| Directivity (db) | ≥55 | ||||||||
| Fiber Length(m) | 1.2(±0.1),Specify | ||||||||
| Fiber Type | Corning SMF-28e, Specify | ||||||||
| Operation Temperature℃ | -40~+85 | ||||||||
|
