Categories | LED Billboards |
---|---|
Brand Name: | Shichuangxinke |
Model Number: | SCXK-P6.67 |
Certification: | CE RoHS FCC CCC TUV UL |
Place of Origin: | China ,Guang Dong |
MOQ: | negotiation |
Price: | negotiation |
Payment Terms: | L/C, T/T, Western Union, D/A, D/P, MoneyGram |
Supply Ability: | 5000sqm per month |
Delivery Time: | 7 working days after deposit payment received |
Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
Pixel: | 6.67mm |
Pixel configuration: | red green blue |
Scanning Mode: | 1/8 |
Module Size: | 320x160mm |
HS Code: | 8528591090 |
application: | airport,wall,church wedding,exhibition stand |
Driver IC: | MB5024/MB5124 |
warranty: | 2-3 years |
Cabinet Size: | 640x640mm |
Company Info. |
Shenzhen ShiXin Display Technology Co.,Ltd |
Verified Supplier |
View Contact Details |
Product List |
Full Color P6.67 Outdoor Fixed LED Video Display for Advertising ,wall movie show

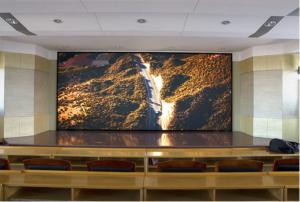

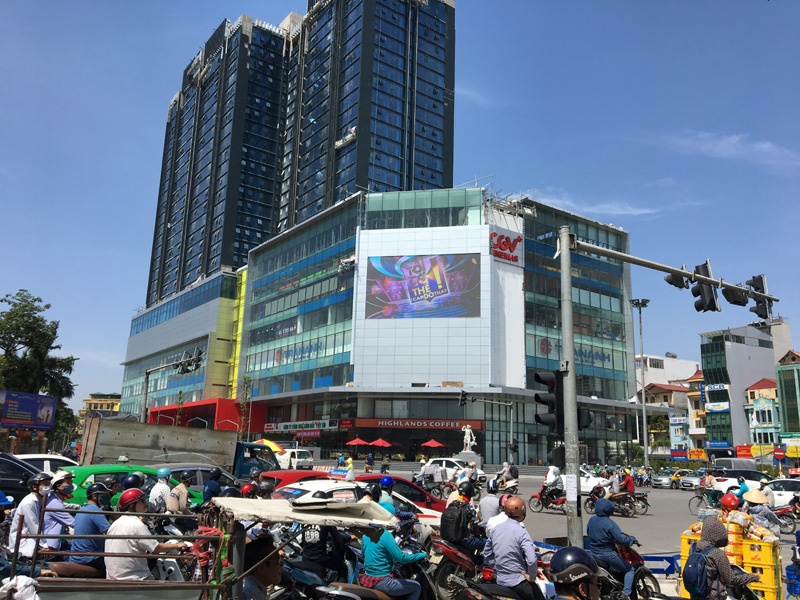

Applications:
building wall, CBD video wall, shopping mall video wall, super
market, ports, high speed way, roadside, cinema, truck, trailer,
bus, large building top.
Product feature:
1. Suitable for strict climatic conditions, up to IP65 protection
rating.
2. Seamless splicing.
3. Scientific structural design and cooling system to ensure
stability and reliability, can be used continuously for a long
time.

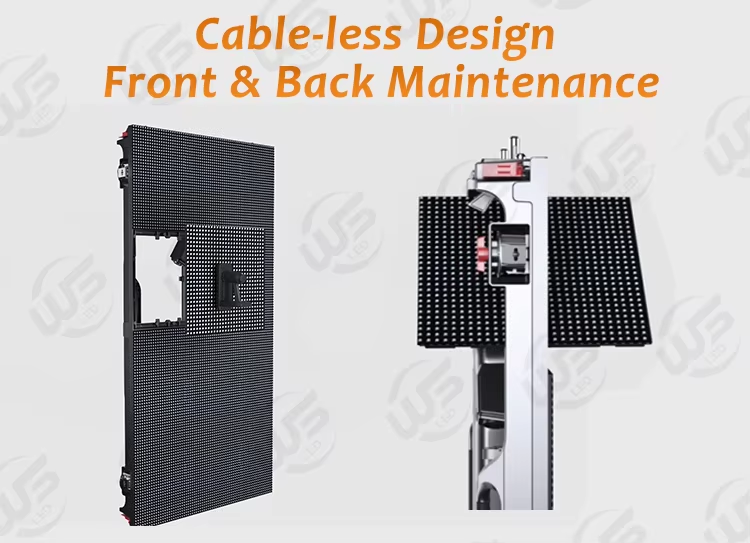

4. Quick installation, easy maintenance, front or rear maintenance
can be used.
outdoor SMD P6.67 | |||
Resolution/mm | 6.67 | ||
Pixel configuration | 1R1G1B | ||
Pixel density/pixels/m² | 22478/m² | ||
Module resolution | 48x24 | ||
Module size/mm | 320x160mm | ||
View distance | 14-300m | ||
Single point brightness adjust | Can be added | ||
Single point color adjust | Can be added | ||
White balance brightness | >7500cd/㎡ | ||
Color temperature | 6500K-9500K | ||
Horizontal view angle | 120(degrees) | ||
Vertical view angle | 60(degrees) | ||
Signal Process bit | 10 or 16bit | ||
Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||
Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||
Driving mode | Constant driving current | ||
Scanning mode | 1/4SCANNING | ||
Frame rate | 60Hz | ||
Refresh frequency | >3000Hz | ||

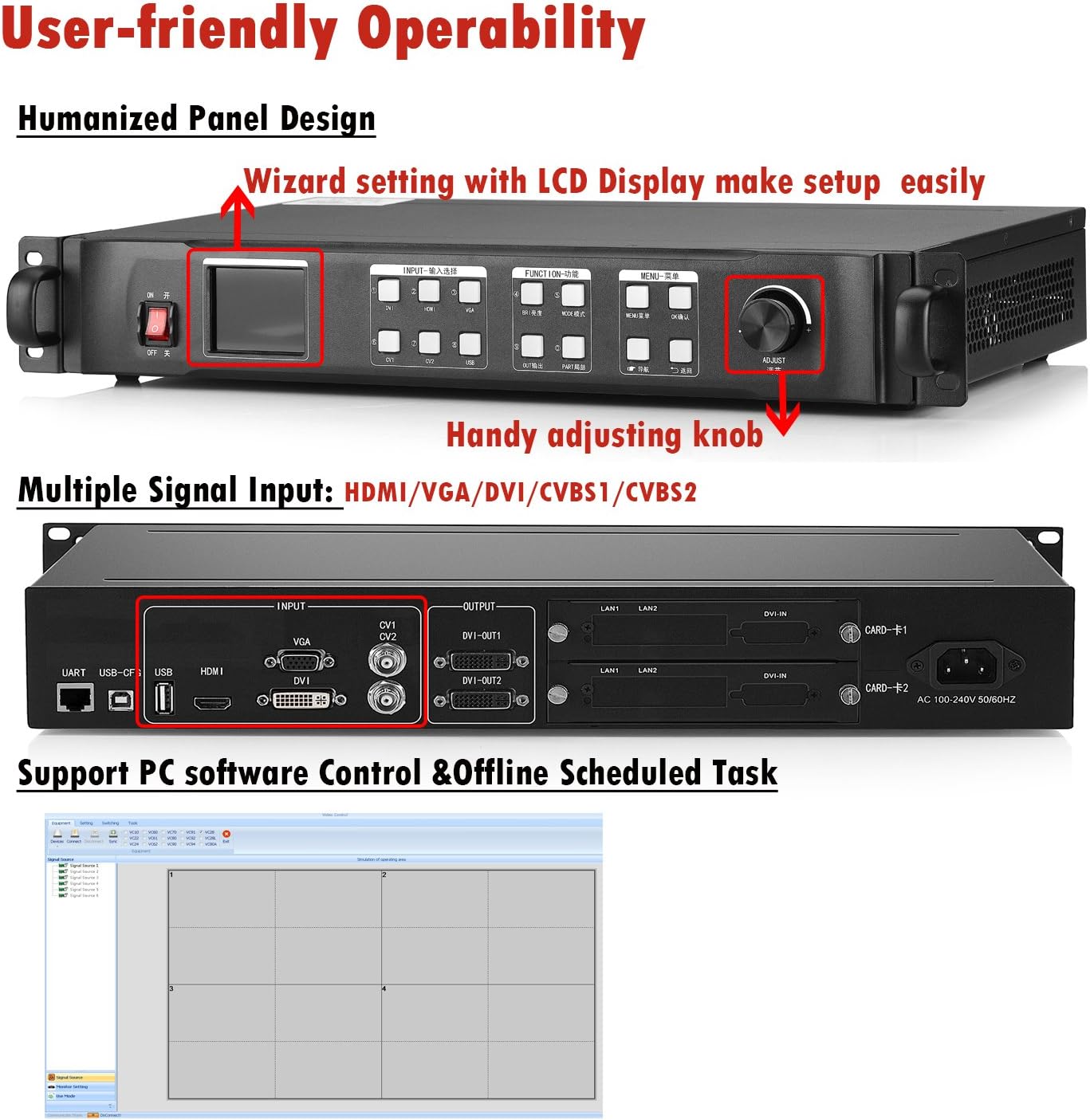

Control mode | Computer synchronous | ||
Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||
255 steps. No grey loss | |||
Out of control point | <1/10000 | ||
Working hours | ≥72hours | ||
Mean Time Between Failure | >5000hours | ||
Life time | 100000hours | ||
Life-all-white(brightness halving) | 50000hours | ||
Environment temperature range | Operating temperature range: -20-45℃ | ||
Self-check technology | LED spot self-check, communications check, power check, | ||
temperature monitor(need customization) | |||
Remote monitoring | Remote supervision and control, record potential fault, | ||
send out warning signs to the operators.(need customization) | |||
Software environment | WindowsNT,Windows1999,WindowsXP | ||
Luminous point width between centres | Deviation<3% | ||
Brightness uniformity | <10% | ||
Color uniformity(chromaticity coordinate) | ±0.003 | ||
Power supply request | AC85-264V(50Hz-60Hz) | ||
Contrast | (1000:1) | ||
System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||
Humidity(working) | working:10-95% | ||
Humidity(storing) | storing:10-95% |
Remark
1.Price term:Total quotation is based on FOB Shenzhen
2.Warranty period: 2 years
3.Payment term: 30% deposit,Balance before shipping.
4.Packing method: flight case & wooden case
5.Delivery time: 3-20 days after deposit
![]() |
