Identifier Fiber Optic Tools , Fiber Optic Test Equipment For Fiber Testing

Identifier Fiber Optic Tools , Fiber Optic Test Equipment For Fiber Testing

General informations:

- The KCO3306B Optical Fiber Identifier can quickly identify the direction of transmitted fiber and display the relative core power without any damages to the bended fiber. When the traffic is present, the intermittently audible tone is activated.

- The KCO3306B optical fiber identifier also recognize the modulation like, 270Hz, 1kHz and 2kHz .When they are used to detect the frequency, the continuously audible tone is activated.

- There are four adapter heads available: 0.25mm, 0.9mm, 2.0mm and 3.0mm.

- The KCO3306B optical fiber identifier is powered by a 9V alkaline battery .

Key Features:

- Easy-to-use with “ONE KEY” operation.

- Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning.

- Displays the relative core power

- More accurate test with Sunshade

- Easy-to-replace adaptors

- Durable metal housing and quality construction

- Lower power indication

Specifications:

Item	KCO3306B
Identified Wavelength Range	800~1700 nm
Identified Signal Type	CW, 270Hz±5%, 1kHz±5%, 2kHz±5%
Detector Type	Ø1mm InGaAs 2pcs
Adapter Type	Ø0.25 (Applicable for Bare Fiber), Ø0.9 (Applicable for Ø0.9 Cable ) Ø2.0 (Applicable for Ø2.0 Cable ), Ø3.0 (Applicable for Ø3.0 Cable )
Signal Direction	Left & Right LED
Singe Direction Test Range (dBm, CW/0.9mm bare fiber)	-46~10 (1310nm)
	-50~10 (1550nm)
Signal Power Test Range (dBm, CW/0.9mm bare fiber)	-50~10 (1550nm)
Signal Frequency Display (Hz)	270, 1k, 2k
Frequency Test Range (dBm, Average Value)	Ø0.9mm, Ø2.0mm, Ø3.0mm	-30~0 (270Hz, 1KHz)
		-25~0 (2KHz)
	Ø0.25	-25~0 (1KHz, 2KHz)
		-20~0 (2KHz)
Insertion Loss(dB, Typical Value)	0.8 (1310nm)
	2.5 (1550nm)
Alkaline Battery(V)	9
Operating Temperature(℃)	-10~+60
Storage Temperature(℃)	-25~+70
Dimension (mm)	196x30.5x27
Weight (g)	200

Standard Packages:

Optical Fiber Identifier KCO3306B	1 pc
Adapter heads	4 pc
Sunshade	1 pc
Alkaline battery	1 pc
User Manual	1 pc
Cotton Stick	1 pc
Soft Carrying case.	1 pc

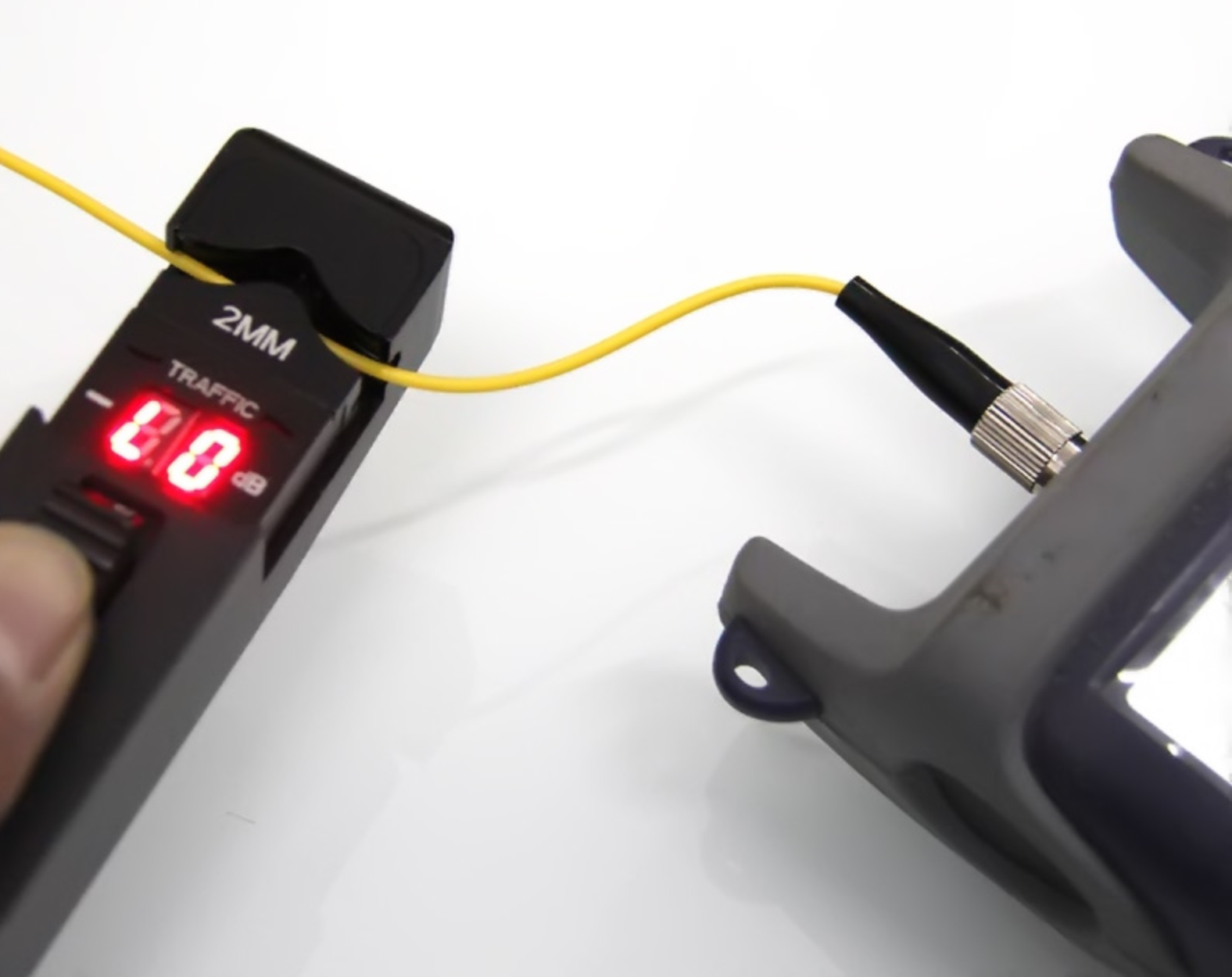

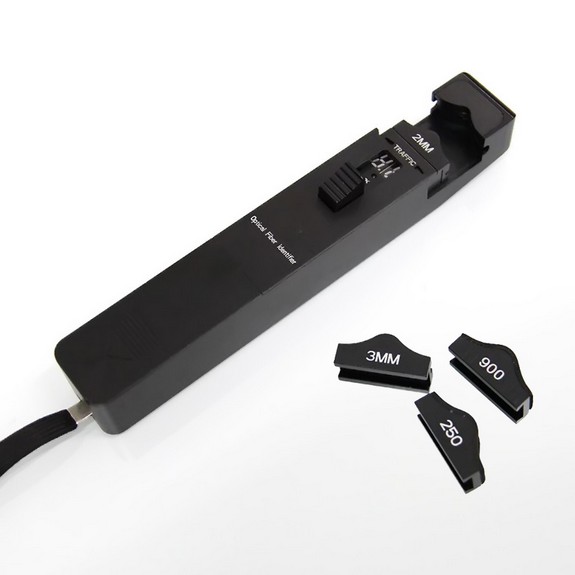

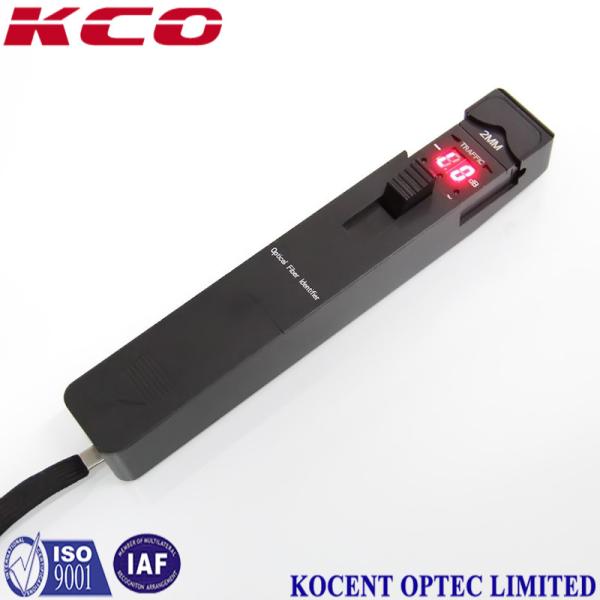

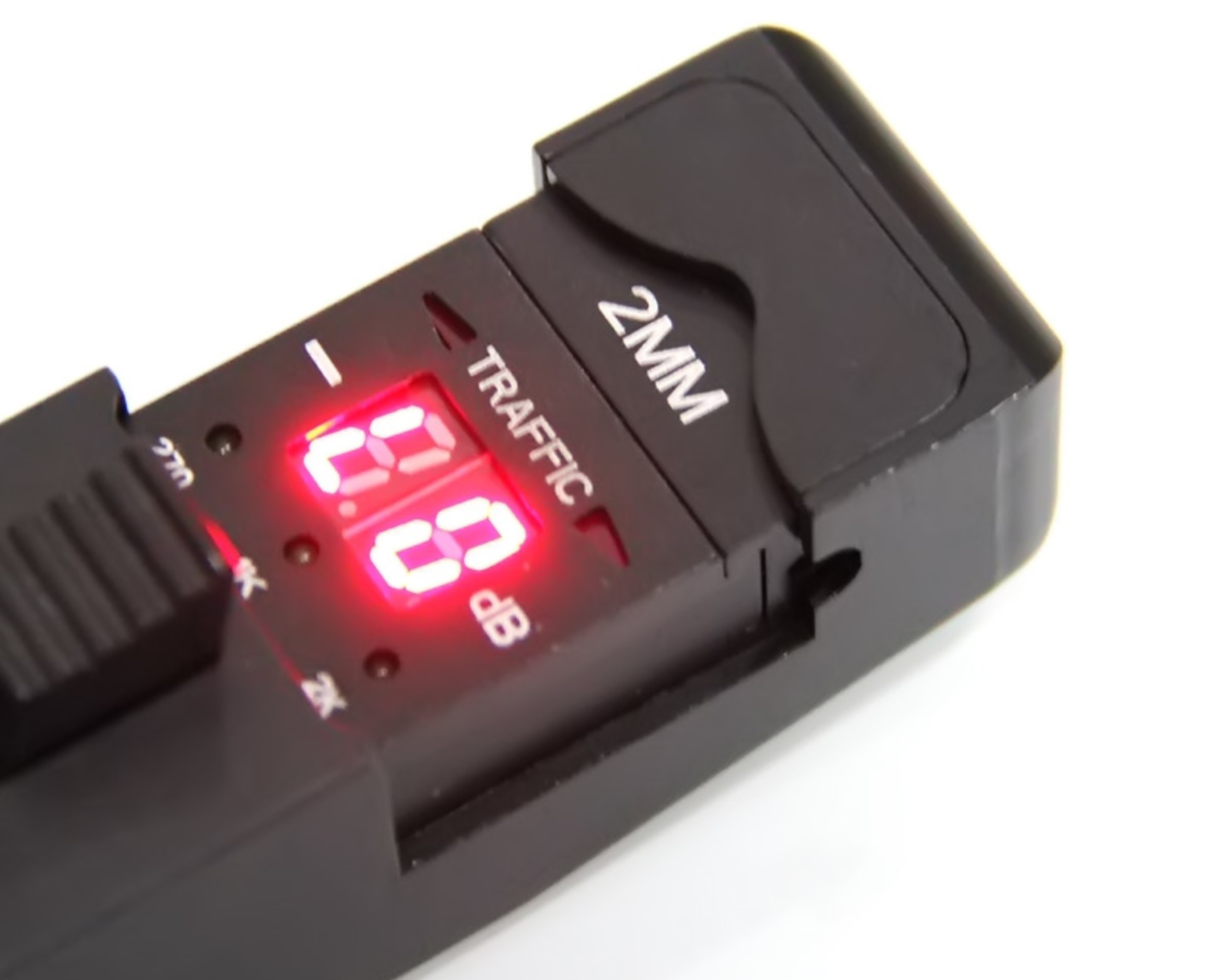

Product photo:

Packing: Carton box, wooden pallet

Shipping:

- By international express such as: TNT, DHL, UPS, etc

- By International air such as CA, AA, EA, etc

- By sea

Product Tags:


*From:	Your email address is incorrect!
*To:	KOCENT OPTEC LIMITED
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Fiber Optic Tools
Brand Name:	KCO
Model Number:	KCO3306B
Certification:	ISO9001, RoHS, UL
Place of Origin:	China
MOQ:	Negotiation
Price:	Negotiable
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	50000 pcs/month
Delivery Time:	2~3 working days
Packaging Details:	Carton box, wooden pallet
Model:	KCO3306B
Cable:	250um, 900m, 2.0mm, 3.0mm
Length wave:	800~1700 nm
Detector:	Ø1mm InGaAs
Signal Frequency Display:	270, 1k, 2k (Hz)
Size:	196x30.5x27 (mm)
