Categories | Transmission Line Tool |
---|---|
Brand Name: | GALAXY |
Model Number: | GXHT-300 |
Certification: | ISO,CE |
Place of Origin: | CHINA |
MOQ: | 2 sets |
Price: | negotiable |
Payment Terms: | L/C, T/T |
Supply Ability: | 1000 sets per month |
Delivery Time: | 30 days |
Packaging Details: | bulk |
Output: | 10T |
Ram Stroke: | 22mm |
Crimping Range: | Cu 16-240mm² |
Length: | 500mm |
Weight: | 6.3kg |
Name: | Transmission Line Tool Integral Manual hydraulic Tool |
Company Info. |
Galaxy power industry limited |
Verified Supplier |
View Contact Details |
Product List |

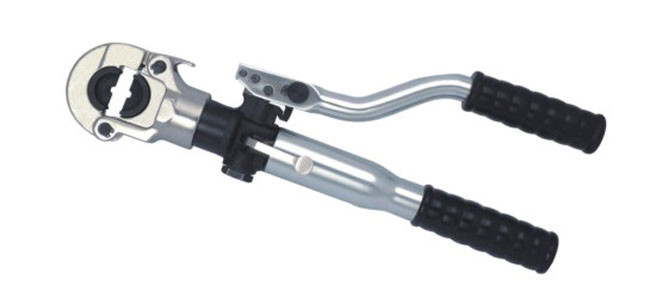

Transmission Line Tool Integral Manual hydraulic Tool with 10 Ton Output
Performance Parameter
Copper and aluminum terminals and nozzles of power cable conductor
body.Feature Description
Instructions
Check whether the pressed terminal matches the wire specification.
Select the mold you want to press, such as the gauge of the pressed terminal 240², then select the upper and lower mold of 240².
Put the mould into the piston and head seat respectively.
Repeatedly start the operation handle and watch the mold. When the upper and lower molds meet a profit, the pressure is finished.
Note
