| Categories | Hydraulic Hose Fitting |
|---|---|
| Brand Name: | PASSION |
| Model Number: | 26711 |
| Certification: | CE, ISO |
| Place of Origin: | Zhejiang |
| MOQ: | 500 pcs |
| Price: | Negotiable. |
| Payment Terms: | L/C, T/T, D/P, MoneyGram, PayPal, etc. |
| Supply Ability: | 100,000 pcs per month |
| Delivery Time: | 25 working days. |
| Packaging Details: | Carton boxes and wooden boxes. |
| Connection: | Insert |
| Structure: | Universal |
| Material: | Stainless Steel |
| Standard: | Yonghua |
| Thread: | JIC Female |
| Color: | Silver |
| Flexible or Rigid: | Rigid |
| Size: | 3/16" to 2" |
| Company Info. |
| Hangzhou Paishun Rubber & Plastic Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Stainless Steel Jic Female 74 Degrees Cone Seat Hydraulic Fitting 26711
We are specialized in hydraulic hose fittings, ferrules, adaptors,
couplings, stainless steel fittings & brass fittings
1. Hydraulic Hose Fittings:
1). BSP, JIC, NPT, ORFS, SAE male, female fitting, straight &
elbow, nuts, ferrules
2). Metric male, female fitting, straight & elbow, nuts, ferrules
3). Reusable fittings
4). One-piece fittings
2. Hydraulic Adaptors:
1). BSP, JIC, NPT male, female adaptor, 3 ways tee 4 ways tee
2). ORFS, SAE, Metric male, female fitting, straight & elbow, nuts,
ferrules
3.Stainless Steel (316SS / 304SS) & Brass & aluminum fittings:
NPT,JIC,BSP etc threaded male and female fittings & adaptors for
low & high pressure
The SAE J516 standard for hydraulic fittings specifies that
fittings shall be plated with a material that passes a 72-hour salt
spray test in accordance with ASTM B117.
Our fitting can stand for at least 96 hours.
Specification
| Description | Part No. | Thread E | Hose Bore | Dimensions | |||
| DN | DASH | A | C | S2 | |||
| JIC FEMALE 74 DEGREE CONE SEAT | 26711-04-03 | 7/16"x20 | 5 | 03 | 14.5 | 9 | 15 |
| 26711-04-04 | 7/16"x20 | 6 | 04 | 15 | 9 | 15 | |
| 26711-05-04 | 1/2"x20 | 6 | 04 | 15.5 | 9.5 | 17 | |
| 26711-05-05 | 1/2"x20 | 8 | 05 | 15.5 | 9.5 | 17 | |
| 26711-05-06 | 1/2"x20 | 10 | 06 | 15.5 | 9.5 | 17 | |
| 26711-06-04 | 9/16"x18 | 6 | 04 | 15.5 | 10.5 | 19 | |
| 26711-06-05 | 9/16"x18 | 8 | 05 | 15.5 | 10.5 | 19 | |
| 26711-06-06 | 9/16"x18 | 10 | 06 | 15.5 | 10.5 | 19 | |
| 26711-06-08 | 9/16"x18 | 12 | 08 | 16 | 10.5 | 19 | |
| 26711-08-06 | 3/4"x16 | 10 | 06 | 17.5 | 11 | 24 | |
| 26711-08-08 | 3/4"x16 | 12 | 08 | 18 | 11 | 24 | |
| 26711-08-10 | 3/4"x16 | 16 | 10 | 19.5 | 11 | 24 | |
| 26711-10-08 | 7/8"x14 | 12 | 08 | 18.5 | 13 | 27 | |
| 26711-10-10 | 7/8"x14 | 16 | 10 | 20 | 13 | 27 | |
| 26711-10-12 | 7/8"x14 | 20 | 12 | 20 | 13 | 27 | |
| 26711-12-08T | 1.1/16"x12 | 12 | 08 | 19 | 15 | 32 | |
| 26711-12-10 | 1.1/16"x12 | 16 | 10 | 21.5 | 15 | 32 | |
| 26711-12-12 | 1.1/16"x12 | 20 | 12 | 21.5 | 15 | 32 | |
| 26711-12-16 | 1.1/16"x12 | 25 | 16 | 23 | 15 | 32 | |
| 26711-14-12 | 1.3/16"x12 | 20 | 12 | 21.5 | 15 | 36 | |
| 26711-16-12T | 1.5/16"x12 | 20 | 12 | 18.5 | 16 | 41 | |
| 26711-16-16 | 1.5/16"x12 | 25 | 16 | 23 | 16 | 41 | |
| 26711-16-20 | 1.5/16"x12 | 32 | 20 | 24 | 16 | 41 | |
| 26711-20-16T | 1.5/8"x12 | 25 | 16 | 23 | 17 | 50 | |
| 26711-20-20W | 1.5/8"x12 | 32 | 20 | 26 | 17 | 50 | |
| 26711-24-20W | 1.7/8"x12 | 32 | 20 | 26.5 | 20 | 55 | |
| 26711-24-24W | 1.7/8"x12 | 40 | 24 | 26.5 | 20 | 55 | |
| 26711-32-20T | 2.1/2"x12 | 32 | 20 | 27 | 23.5 | 75 | |
| 26711-32-32T | 2.1/2"x12 | 50 | 32 | 27 | 23.5 | 75 | |
Note: 1 for use with braided hoses, if use with spiral hoses, hose
fitting series number is 26712-**-**.
Jic Female Hydraulic Hose Fittings 26711 With Stai...

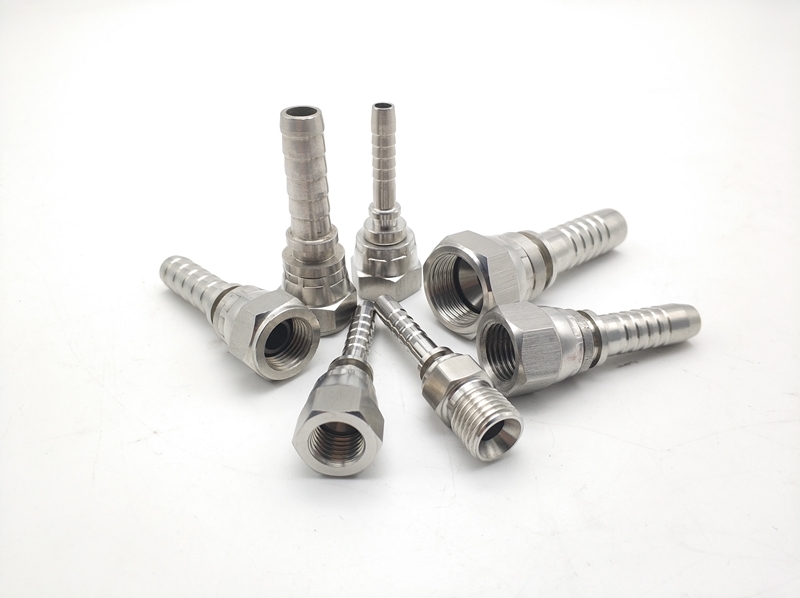

Picture of Product
Production Flow
Material of ferrule: Stainless Steel 304, 316
All of our machines are CNC machines, sizes are more stable and accurate than instrumentation machine.
Packing of Fittings and Ferrules
Carton: 5 layers corrugated carton 24cm X 24cm X 16cm
Wooden Case: 110cm X 80cm X 75cm
Usually 42 corragetd cartons are packed in a wooden case.
FAQ
Q: Is it stainless steel fitting?
A: Yes, if you need carbon steel one, we also can produce it for you.
Q: Is it standard hydraulic fitting?
A: Yes, all of our hydraulic fittings are standard parts.Each of hydraulic hose can find our hydraulic fittings to fit for.
Q: Can you print model and our brand on the ferrule and fitting?
A: We can print model and your brand on the ferrule, but there is no enough space to print them on the fitting, just logo is ok.
Q: Can you produce fitting according to sample or drawings?
A: Yes, we can produce fitting according to your samples or drawings.
Q: Can you galvanize zinc in golden color for carbon steel fitting?
A: Yes, it can be made in golden color, anyway, we suggest to use siliver zinc plated fitting because it is ROHS compliant.
|
