Brand Name: | XD |
Model Number: | 15611SW-S |
Place of Origin: | NINGBO CHINA |
MOQ: | negotiable |
Price: | negotiable |
Payment Terms: | D/P, L/C, T/T |
Supply Ability: | 100000 Piece/Pieces per Month hydraulic reducer pipe reducing fitting |
Delivery Time: | wihtin 30 days or as percustomers' requlement. |
Packaging Details: | export carton, wood pallet |
Material: | Stainless Steel, Brass, stainless steel, carbon steeL |
Thread: | NPT |
technics: | Forged |
Type: | Coupling |
Connection: | Male |
Color: | ucp |
Surface treatment: | Cr+3, Cr+6, Zn-Ni, Zinc plated |
Brand Name:: | XD |
Shape: | Equal |

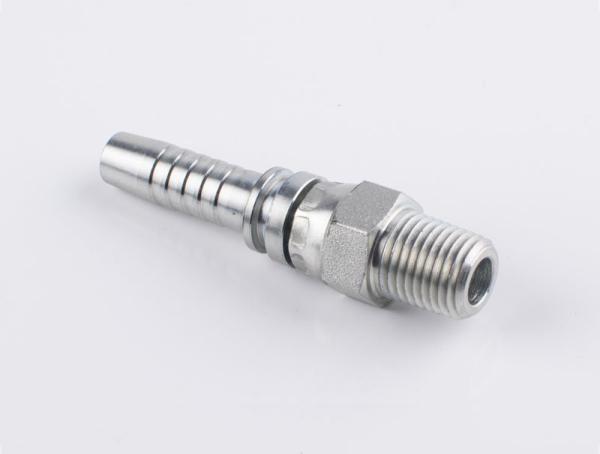

CNC machinery NPT SWIVEL hydraulic hexagon hose fittings nipples

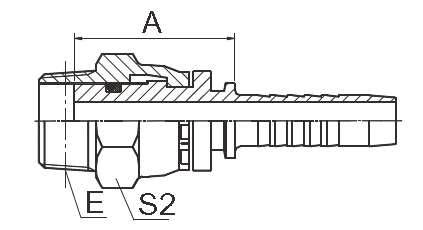

PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||
DN | DASH | A | S2 | ||
15611SW-04-04S | Z1/4"X18 | 6 | 04 | 27.9 | 19 |
15611SW-06-06S | Z3/8"X18 | 10 | 06 | 27 | 22 |
15611SW-08-08S | Z1/2"X14 | 12 | 08 | 30.9 | 27 |
15611SW-12-12S | Z3/4"X14 | 20 | 12 | 33.4 | 32 |
We are specialized in all kinds of hydraulic hose fittings, adapters, ferrules, flanges.
We can provide OEM service and develop new products according to customer's drawings and samples.
![]() |
