ISO20653 IPX9K High Pressure High Temperature Jet Spray Test Chamber for Auto Parts

ISO20653 IPX9K High Pressure High Temperature Jet Spray Test Chamber for Auto Parts

Introduction:

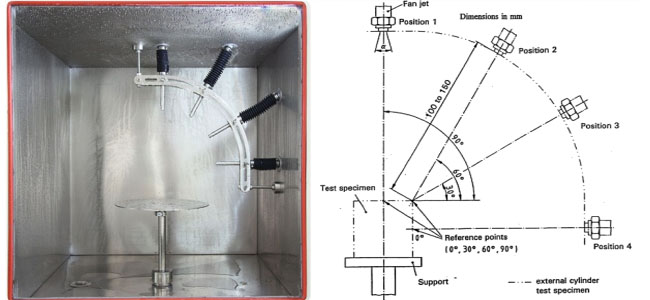

IPX9K High temperature and high pressure jet spray test chamber is designed according to IEC60529, DIN40050-9 figure 7 and ISO20653 figure 8 and 9. IPX9K fan jet and jet distribution for test device to verify protection against high pressure/steam jet cleaning. It is applied to electrical equipment in road vehicles, motors, electric components and auto parts to do the waterproof test. After the test, the user can judge if the performance of the product can meet the requirements or not, and then do the re-designing and improvement.

Features:
1) high-quality steel plate, coating with stoving varnish.
2) The chamber inner and support are made by SUS304# stainless steel.
3) Adopts 7 inch touch screen and PLC core control component, easy to operation and auto control.
4) Adopts high quality stepping motor, set the speed and angle by touch screen.
5) IPD temperature control, set the temperature by touch screen.
6) Test time: 0-999min adjustment, auto stop.
7) Communication function optional, can work with PC to save the data.

Parameter:

Picture:
