Computer 1.4 Inch DC Blower Fan 35mm 5v / 12 Volt Industrial Blower Fan

Categories DC Blower Fan
Brand Name: MX
Model Number: MX3510GBU1
Certification: CE ROHS
Place of Origin: CHINA
MOQ: 500pcs
Price: USD + 1 / 5 + Piece
Payment Terms: T/T, Western Union
Supply Ability: 10000 + Piece + A Day
Delivery Time: 7 - 10 Working Days
Packaging Details: Carton Box
Color: Black

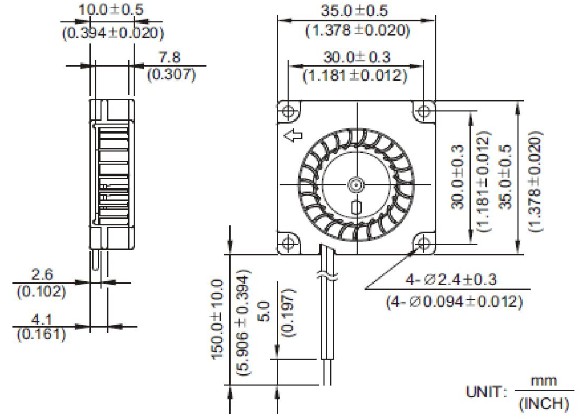

Size: 35mm x 35mm x 10mm
Voltage: 5v 12v
Bearing Type: Sleeve Bearing or Ball Bearing
Speed: 5500 / 8500rpm
Max Air Flow: 1 . 34 / 2 . 12CFM
Rated Amp: 0 . 05 / 0 . 2A
Materail: Pleastic
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Computer 1.4 Inch DC Blower Fan 35mm 5v / 12 Volt Industrial Blower Fan

35mm x 35mm x 10mm 1 . 4 Inch DC Blower Fan 5V / 12V / 3510 Fan Blower


Blower dc fan 35mm, low noise and long life expectancy, are widely used in the computer information technology, network communications, as well as industrial production equipment, medical equipment, home appliances, etc.

1

Electric Strength

5mA max at 1500VAC for 1 min between lead wire and frame

2

Insulation Resistance

10M ohm between lead wire and frame(DC 500V)

3

Life Expectancy(Ball bearing):

50000hrs min at 40 degree C/L10 relative humidity 65%+/-20%

4

Life Expectancy(Hypro bearing):

>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20%

5

Life Expectancy(Fluid Dynamic bearing):

>60000hrs min at 40 degree C/L10 relative humidity 65%+/-20%

6

Operation Temperature

-10~75 degree C(+14~167 degree F),normal; -10~90 degree C(+14~194 degree F), specification

7

Storage Temperature

Storage Temperature: -40~75 degree C(-40~167 degree F)

8

Protection

Motor protection and polarity protection

9

Lead wire

UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26

10

Plastic Material

Motor protection and polarity protection




Competitive Advantage:

*Qualified, cost effective and easily operated

*Small in shape, have compact structure

*UL, CE, Rohs, CUL, CCC

* Competitive Pricing

* Keep Investing and Developing In New Products

* The Most Advanced Testing and Measuring Equipment

* On-Time Delivery
